Hydrapulse EHPU Product Line
Electro-Hydraulic Power Unit
EHPU – Electro-Hydraulic Power Unit
The Hydrapulse® EHPU is a rugged smart motor designed around the needs of the fluid power market with integrated motor, controller, and closed-loop feedback designed for mobile and Industrial Hydraulic Applications.
The EHPU is available in high voltage for your electric or fuel cell chassis integration, low voltage options are currently in development and will be available soon. Call our engineering team for custom options such as connectors, porting, mounting, and reservoirs.
Frame Size 1
With up to 3 kW of power for the medium- and heavy-duty vehicle platforms such as class 3 to class 7. The Frame Size 1 provides flexible and powerful options such as an integrated reservoir, custom mounting, and more.
Rated Power
2.5 kW (3.3hp)
Voltage
350 to 800 VDC
SAE Pump Mounting
View MoreEHPU-1Electro-Hydraulic Power Unit
Need Controls or Accessories For Your Frame Size 1?
Get in touch for backup, replacement or custom components.
Frame Size 2
With up to 10 kW of power for heavy-duty vehicle platforms up to Class 8 and beyond. For mining, commercial trucking, and other high power Hydraulic Applications, our Frame Size 2 allows your electrification project to keep moving.
Rated Power
10 kW (13.4hp)
Voltage
350 to 800 VDC
SAE Pump Mounting
View MoreEHPU-2Electro-Hydraulic Power Unit
Need Controls or Accessories For Your Frame Size 2?
Get in touch for backup, replacement or custom components.

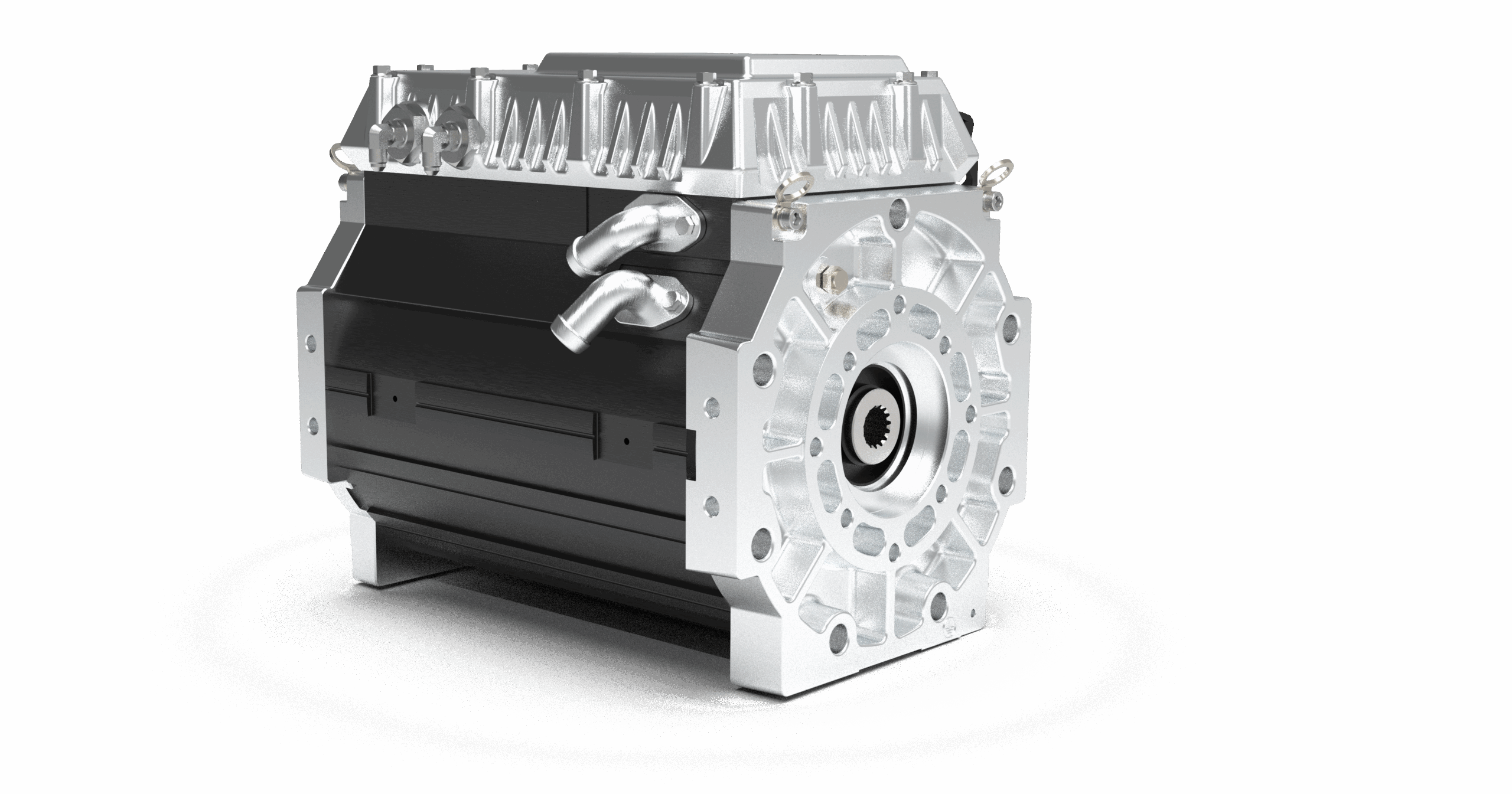

Frame Size 3
The Hydrapulse F3 Motors are the perfect solution for On and Off Highway application with power requirements over 20kW. Underground Mining, Wheel Loaders, Excavators, or E-PTO Applications.
Rated Power
30 kW (40hp)
Voltage
350 to 800 VDC
SAE Pump Mounting
View MoreEHPU-3-100Electro-Hydraulic Power Unit
Need Controls or Accessories For Your Frame Size 3?
Get in touch for backup, replacement or custom components.
Are you looking for even more electro-hydraulic power?
Frame Size 3 Available Now
The next generation of electro-hydraulic pumps and our most powerful Hydrapulse to date, the F3 allows cutting edge advancements in machine learning, AI, and motion control to be quickly integrated into your application.
