EHPU-1

Electro-Hydraulic Power Unit

Features

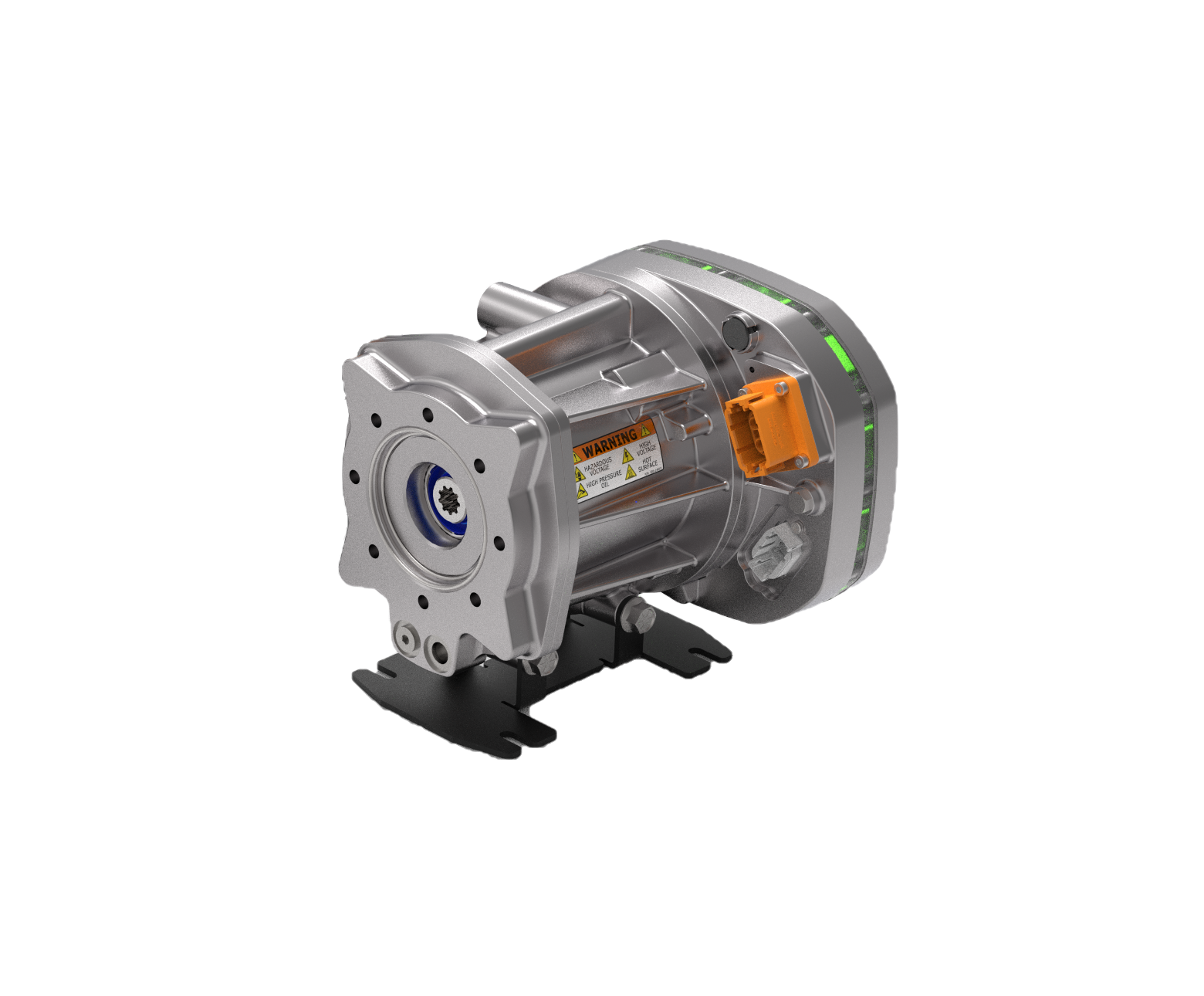

EHPU-1-large
EHPU-1-large
previous arrow
next arrow
EHPU-1-large
EHPU-1-large
previous arrow
next arrow

Key Features

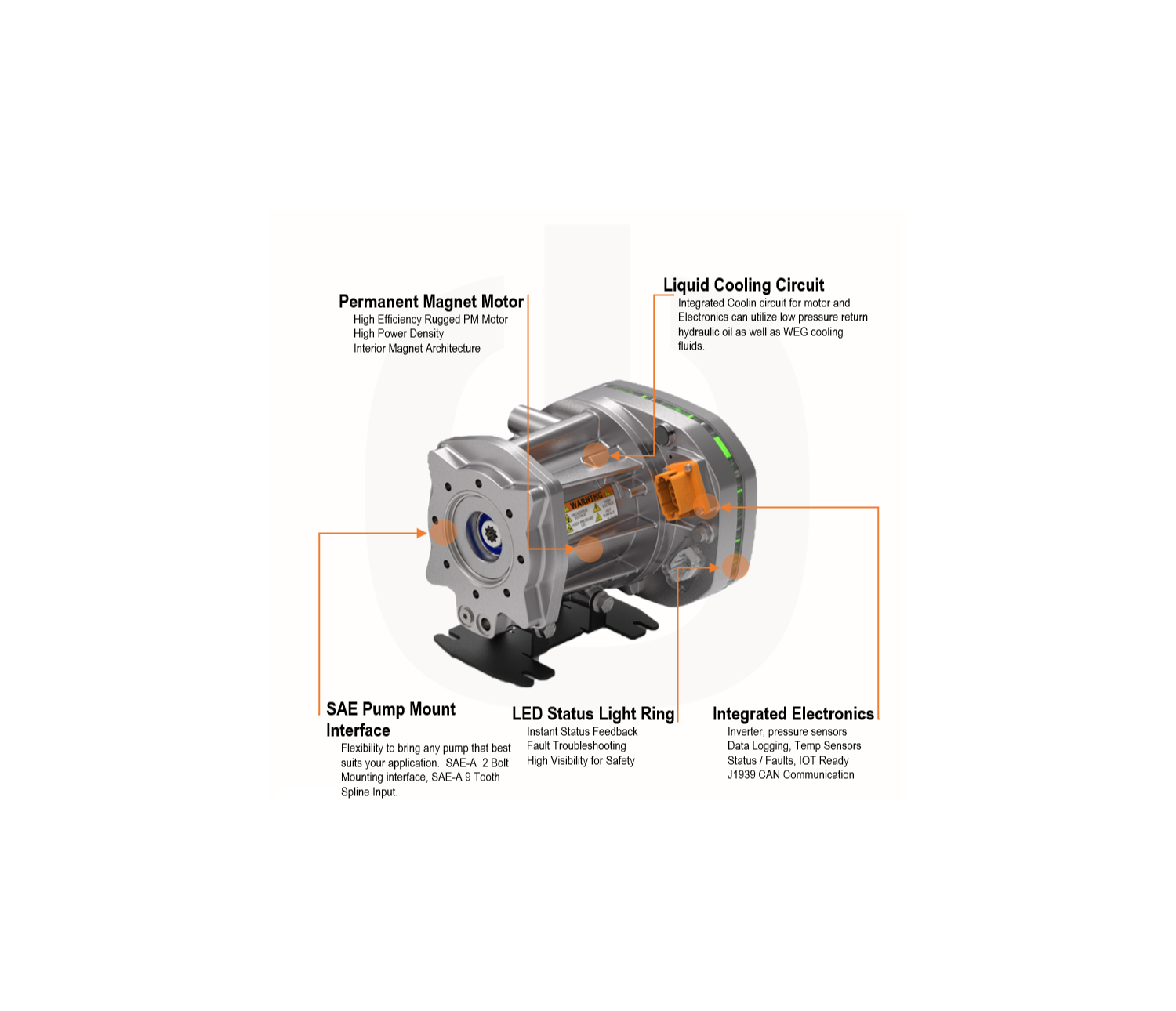

With our integrated cooling, power electronics, motor, and pump, the Hydrapulse® EHSU provides the cleanest and most cost effective integration into your chassis, machine, or vehicle platform.

  • Onboard pressure transducers
  • Power dense permanent magnet motor
  • 200vDC to 800vDC
  • HVIL connection
  • Integrated cooling (no external cooling required)
  • CAN / J1939 Communications
  • Onboard diagnostics
  • Power-on-demand / energy savings
  • Complete temperature monitoring
  • Rugged die-cast aluminum housing

Applications

EHPU-1-075_Application-(5)
EHPU-1-075_Application- (4)
EHPU-1-075_Application- (3)
EHPU-1-075_Application- (2)
EHPU-1-075_Application- (1)
previous arrow
next arrow
EHPU-1-075_Application-(5)
EHPU-1-075_Application- (4)
EHPU-1-075_Application- (3)
EHPU-1-075_Application- (2)
EHPU-1-075_Application- (1)
previous arrow
next arrow

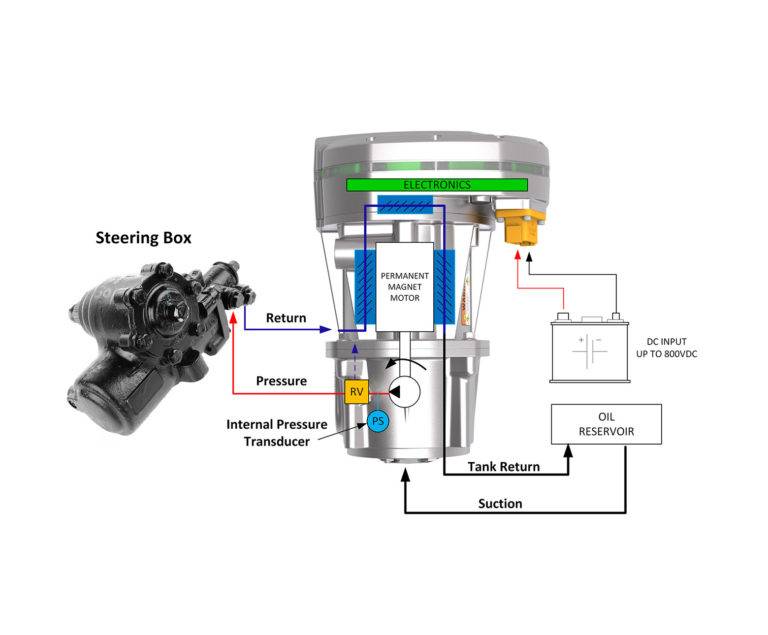

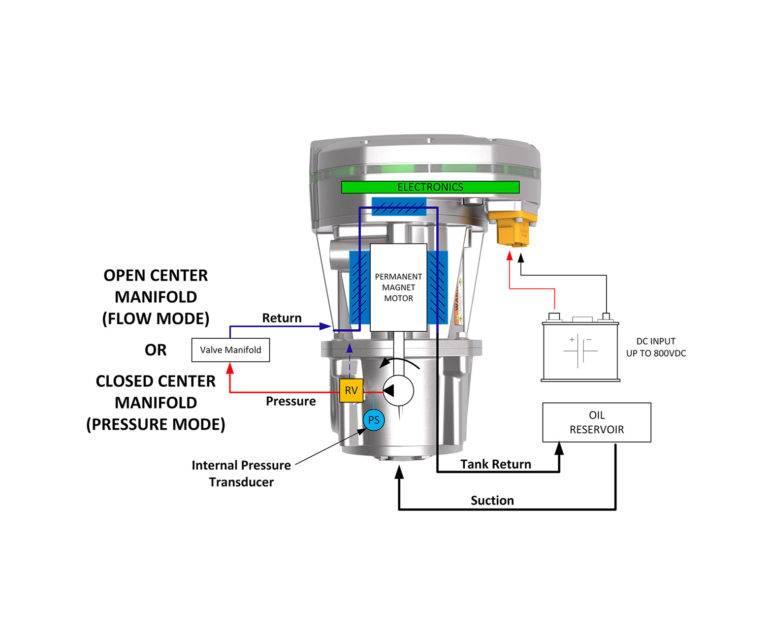

Applications

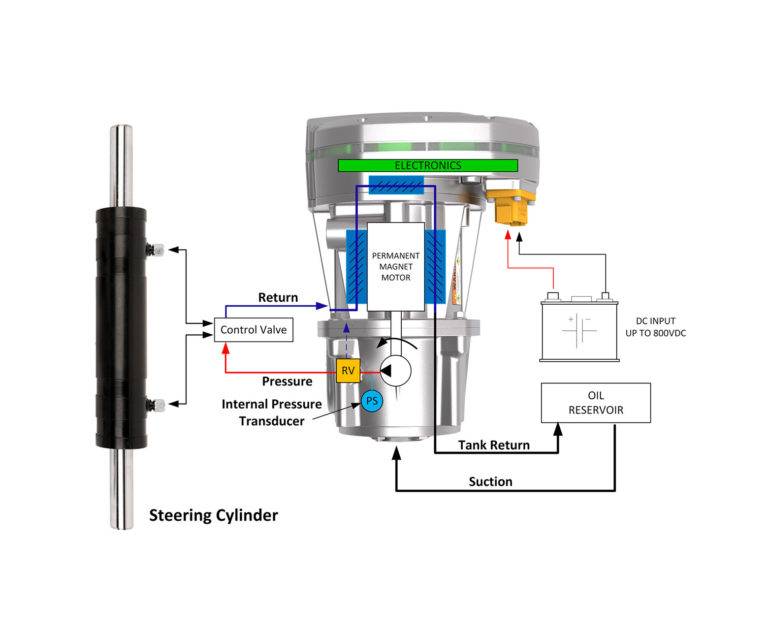

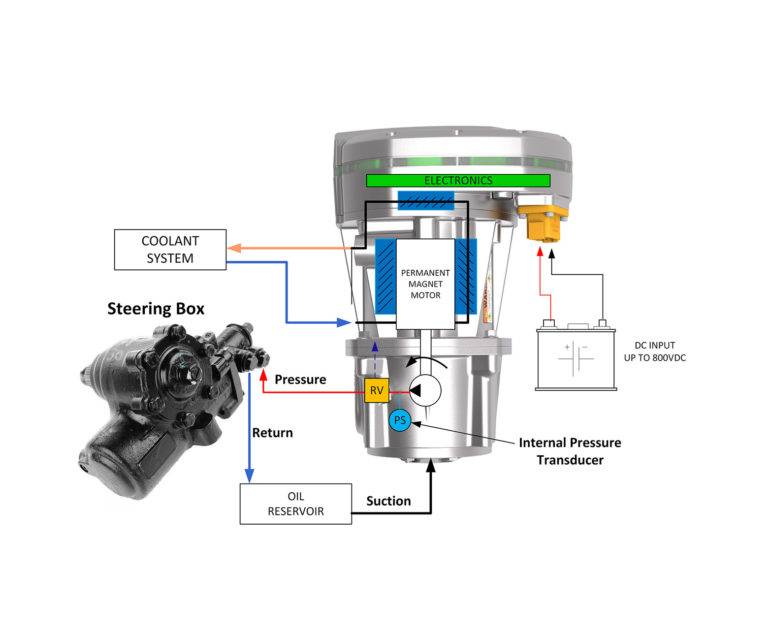

The Frame Size 1 Electro-Hydraulic Power unit is optimized for alternative powered vehicles in the medium-duty vehicle weight categories between 10,000 lb. (4,500 kg) and 26,000 lb. (12,000 kg) needing hydraulic steering power levels up to 3 kW.

  • Bus/Transit
  • Mining vehicles
  • BEV/FCEV/Hybrid Vehicles
  • Bucket / Work / Vocation / Utility Trucks
  • Delivery / Last Mile Trucks
  • Box / Refer / Regional haulers
  • Airport Ground Support Equipment (GSE)
  • Port / Terminal Trucks / AGV
  • Purpose Built Platforms
  • Off-highway vehicles

Specifications

EHPU-1-075_Specifications- (4)
EHPU-1-075_Specifications- (3)
EHPU-1-075_Specifications- (2)
EHPU-1-075_Specifications- (1)
previous arrow
next arrow
EHPU-1-075_Specifications- (4)
EHPU-1-075_Specifications- (3)
EHPU-1-075_Specifications- (2)
EHPU-1-075_Specifications- (1)
previous arrow
next arrow

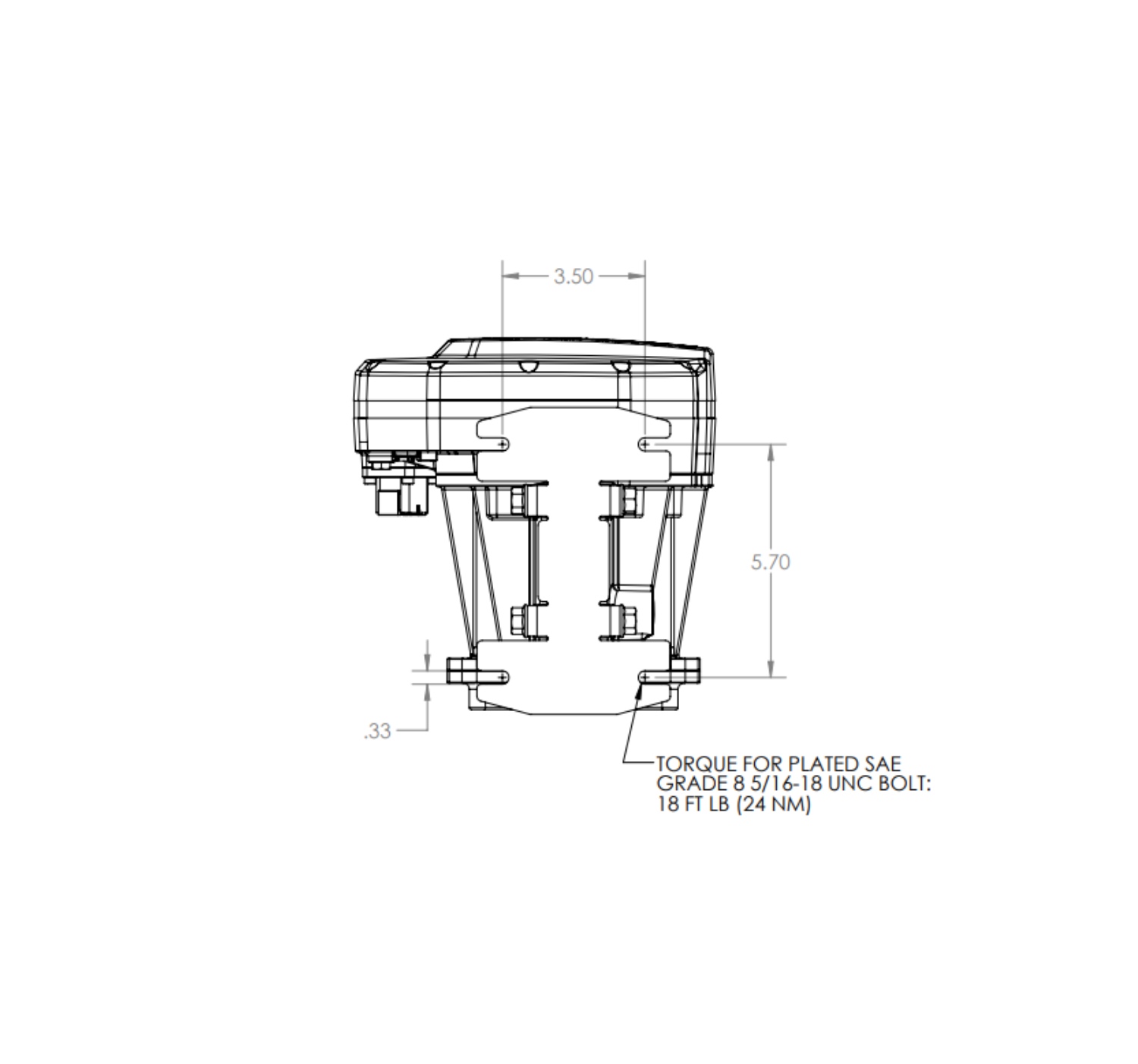

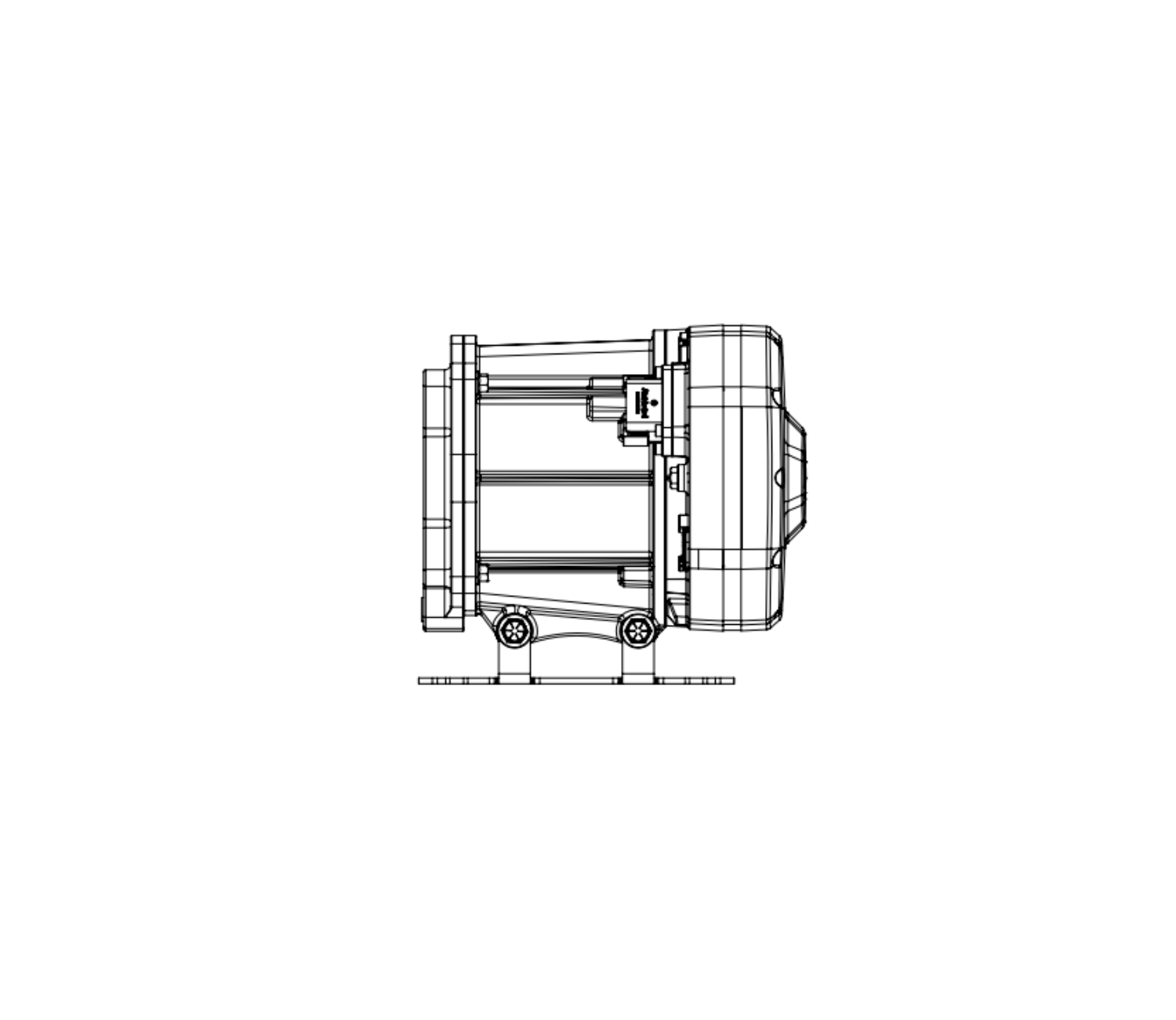

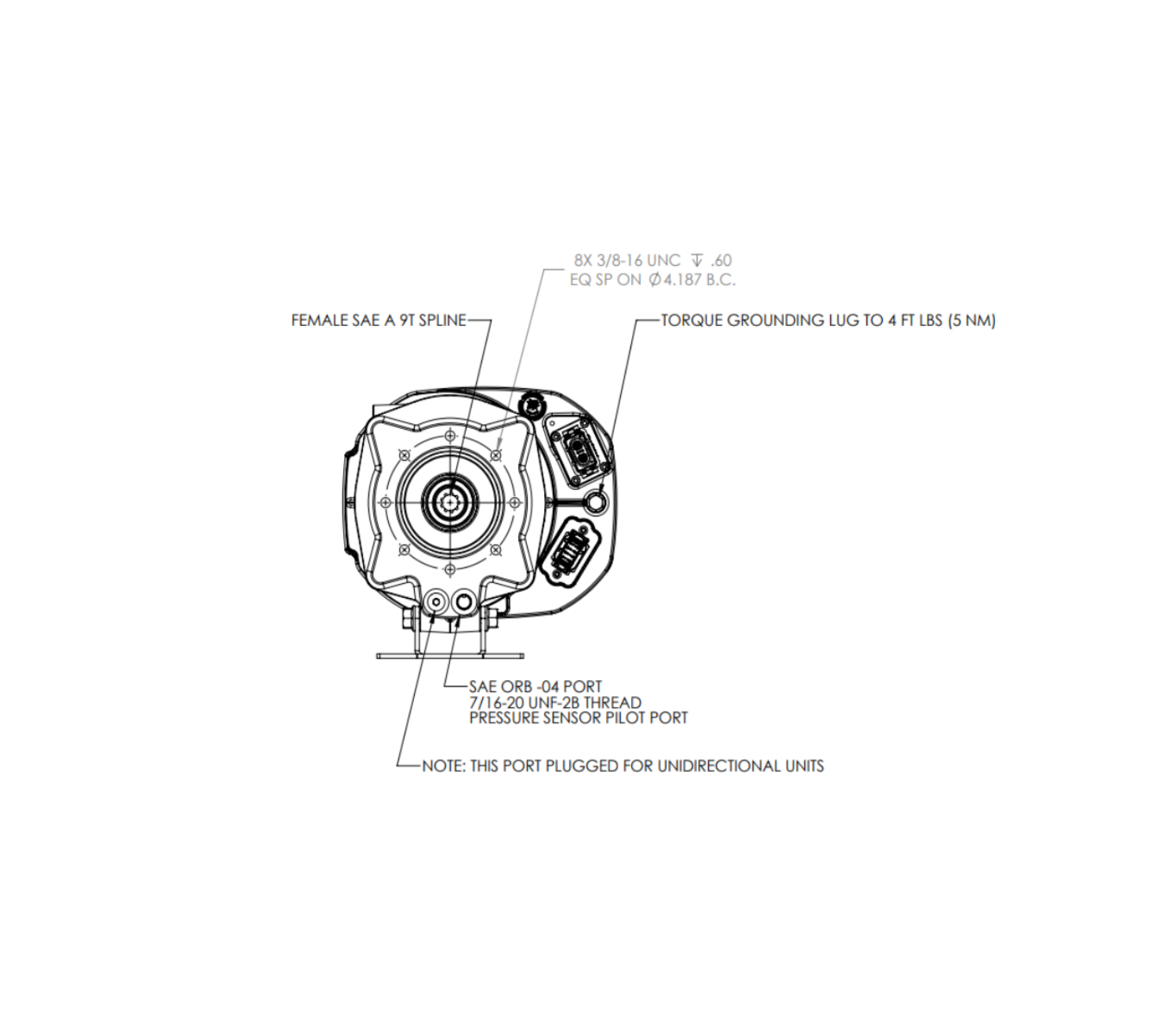

Specifications

Built from the ground up for the rugged on- and off-highway markets, The F1 Series steering unit meets the following specifications:

Rated current – 7 amps
IP Rating IP67
Max Speed 4,000 rpm
Weight 14.2kg (31.4lbs.)
Rated Voltage 200Vdc to 800Vdc
Rated Power 2.5 kW (3.3hp)
Operating Temp. -40°C to 85°C
Storage Temp. -40°C to 125°C

Accessories

EHPU-1-075_Accessories- (5)
EHPU-1-075_Accessories- (4)
EHPU-1-075_Accessories- (3)
EHPU-1-075_Accessories- (2)
EHPU-1-075_Accessories- (1)
previous arrow
next arrow
EHPU-1-075_Accessories- (5)
EHPU-1-075_Accessories- (4)
EHPU-1-075_Accessories- (3)
EHPU-1-075_Accessories- (2)
EHPU-1-075_Accessories- (1)
previous arrow
next arrow

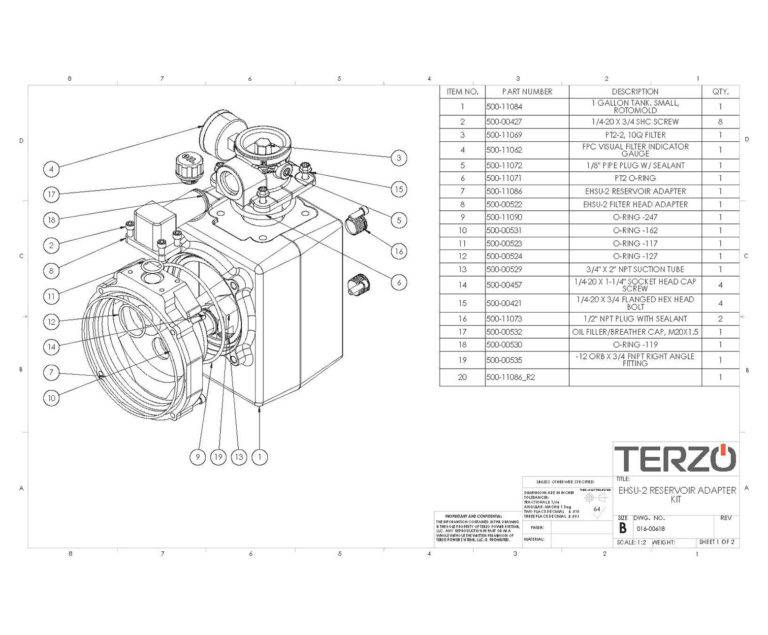

Accessories

We offer a complete assortment of accessories to ensure you have everything you need for your electro-hydraulic system. If you have any questions or do not see what you need, be sure to give our team a call.

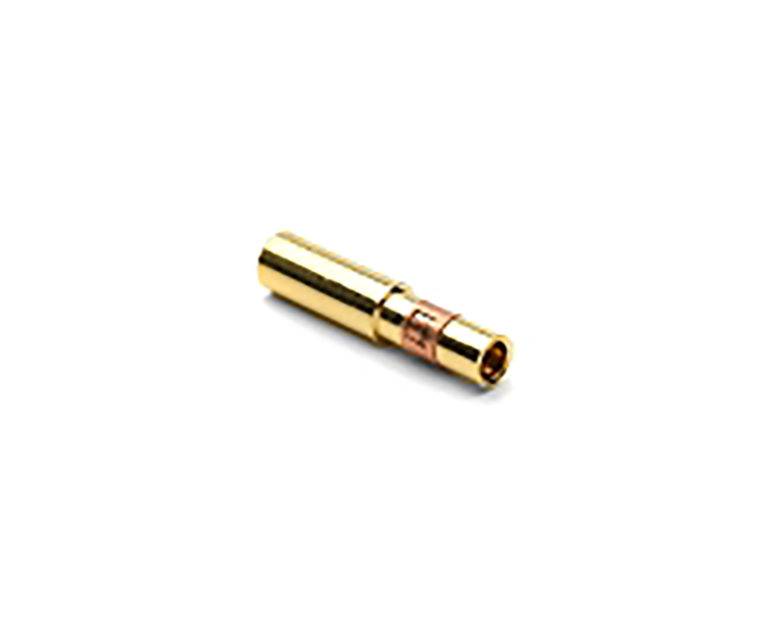

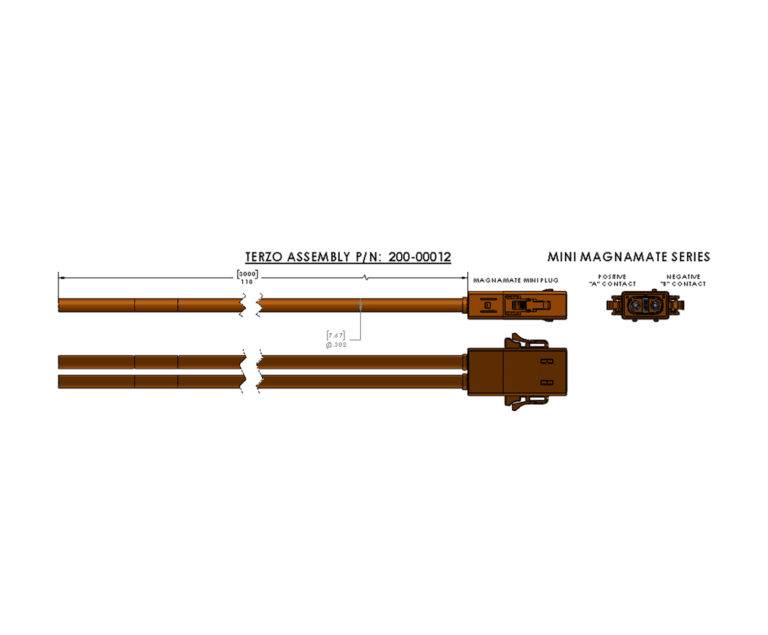

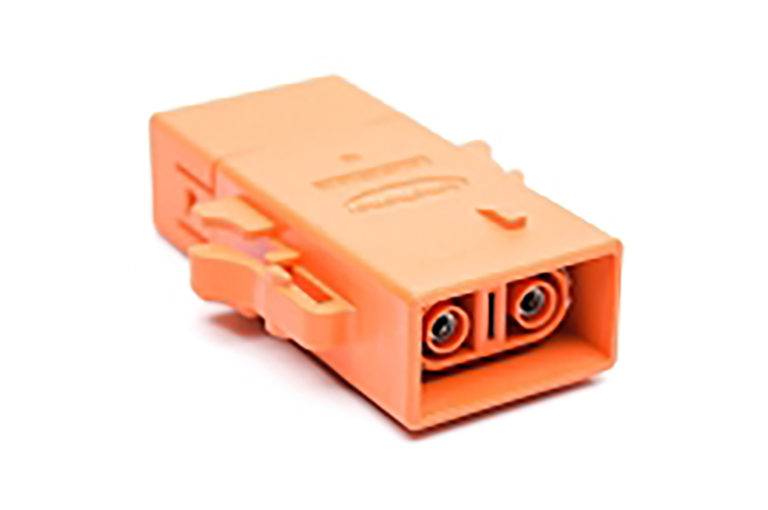

High Voltage Power Cable

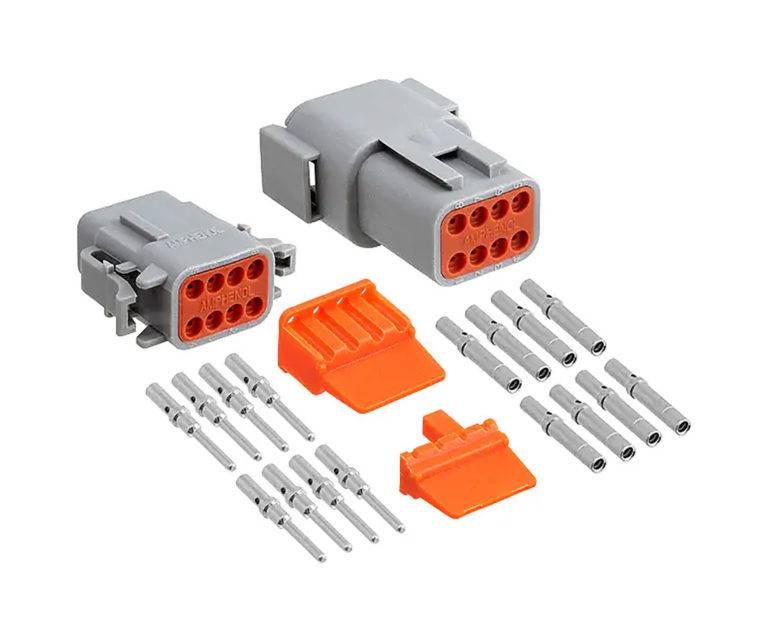

Low Voltage Connector Kit
Mounting Bracket(s)
Reservoir Kits (Only Available for EHSU, with Integrated pump)
Wireless / Wired Controllers
I/O Modules
Fittings / Hose Kits
Lifting Brackets
Cooler Packages
Connector kits

Details

The EHPU-1 power unit delivers 2.5 kW of high-efficiency performance in a rugged, IP67-rated enclosure. Designed for demanding EV and hybrid applications, it integrates a compact motor, controller, and cooling system for seamless vehicle integration. Built-in pressure transducers and CAN/J1939 communication provide advanced control and diagnostics, while SAE pump mounting offers flexible compatibility for custom hydraulic needs.

Rated Power
2.5 kW (3.3hp)

Voltage
350 to 800 VDC

SAE Pump Mounting

Order Codes

EHPU – 1 – 056 – 350 – U – SAE – XXX
EHPU – 1 – 056 – 650 – U – SAE – XXX

OEM Customs

Environmental Protection Projections

Climate

  • SAE J1455-4.1.3 Temperature Cycle
  • SAE J1455-4.1.3 Thermal Shock
  • SAE J1455-4.1.3 Thermal Stress
  • SAE J1455-4.2 Humidity

Mechanical Vibration

  • SAE J1455-4.10 Swept Sine Vibration
  • SAE J1455-4.10.4 Random Vibration
  • SAE J1455-4.11 Mechanical Shock
  • SAE J1455-4.11 Operational Shock / Harness Shock
  • SAE J1455-4.12 Combined Environmental
  • ISO 16750 Vibration

Electrical

  • SAE J1455-4.13 Heavy-Duty Truck Electrical Environment

EMI/EMC EIC

  • IEC 61000-6-4 Radiated Emissions

  • IEC 61000-6-2 Industrial Immunity

  • FCC Part 15B Class A

  • CISPR 25

  • ISO 11452-2 Radiated Immunity (RI)

  • ISO 11452-4 Bulk Current Injection (BCI)

  • ISO 10605 Electrostatic Discharge (ESD)

  • ISO 7637-2 (3rd Edition) Electrical Transients (on 12VDC lines)
