EHPU-2
Electro-Hydraulic Power Unit
Features
Key Features

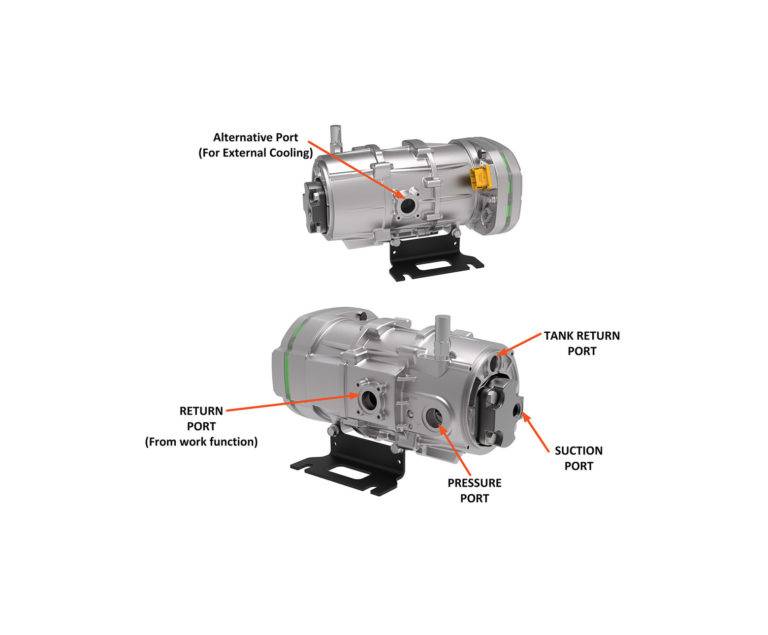

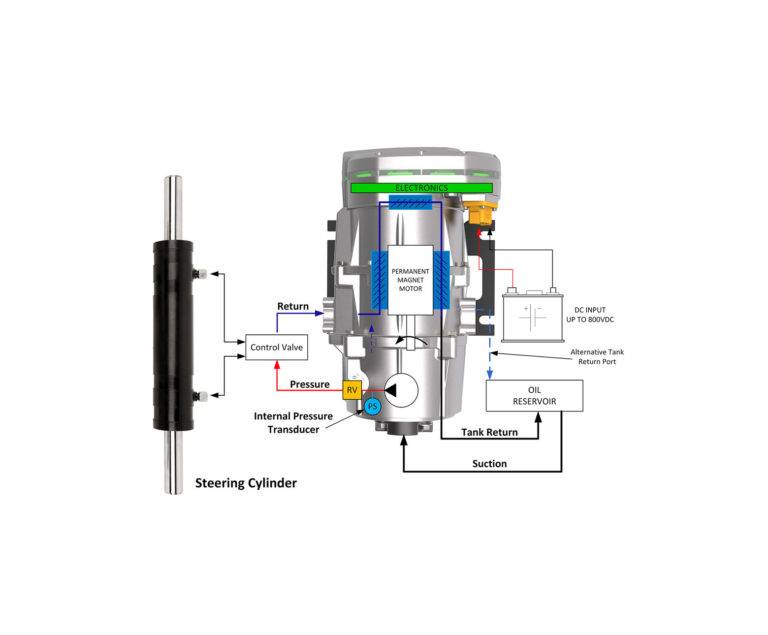

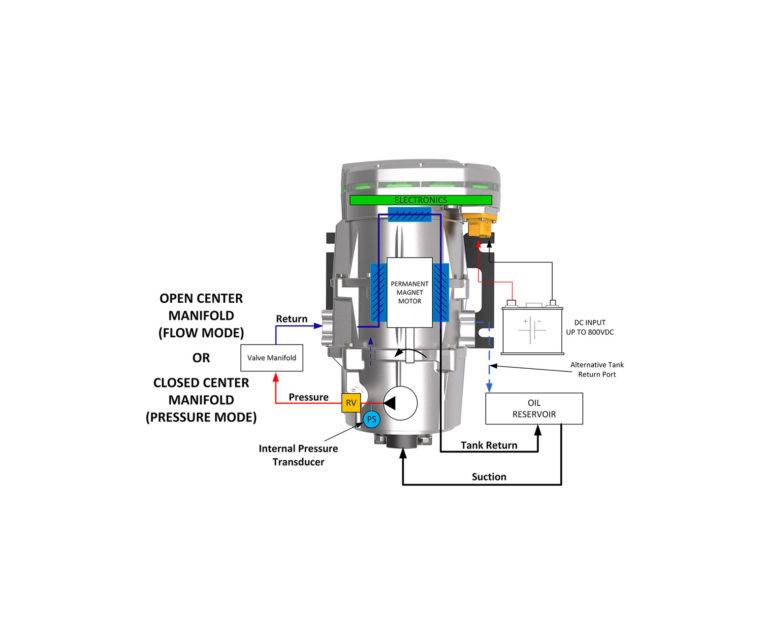

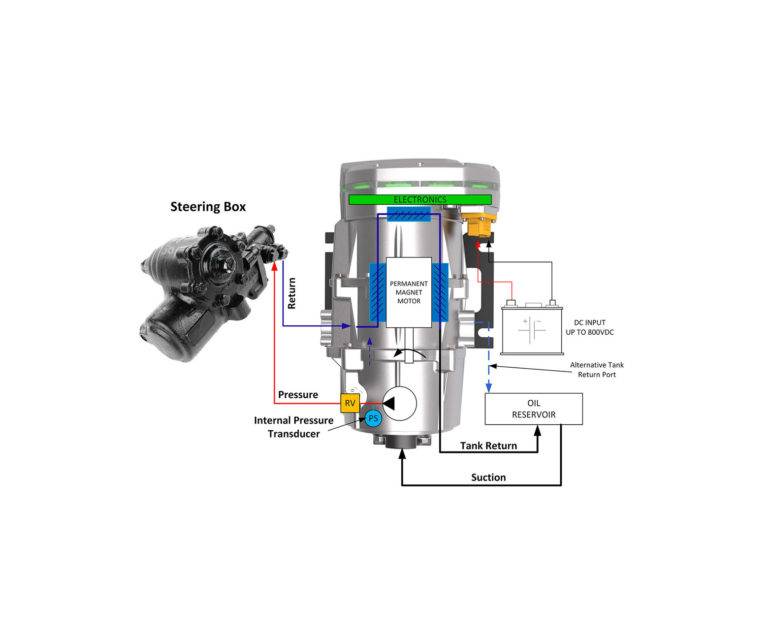

Applications
Applications

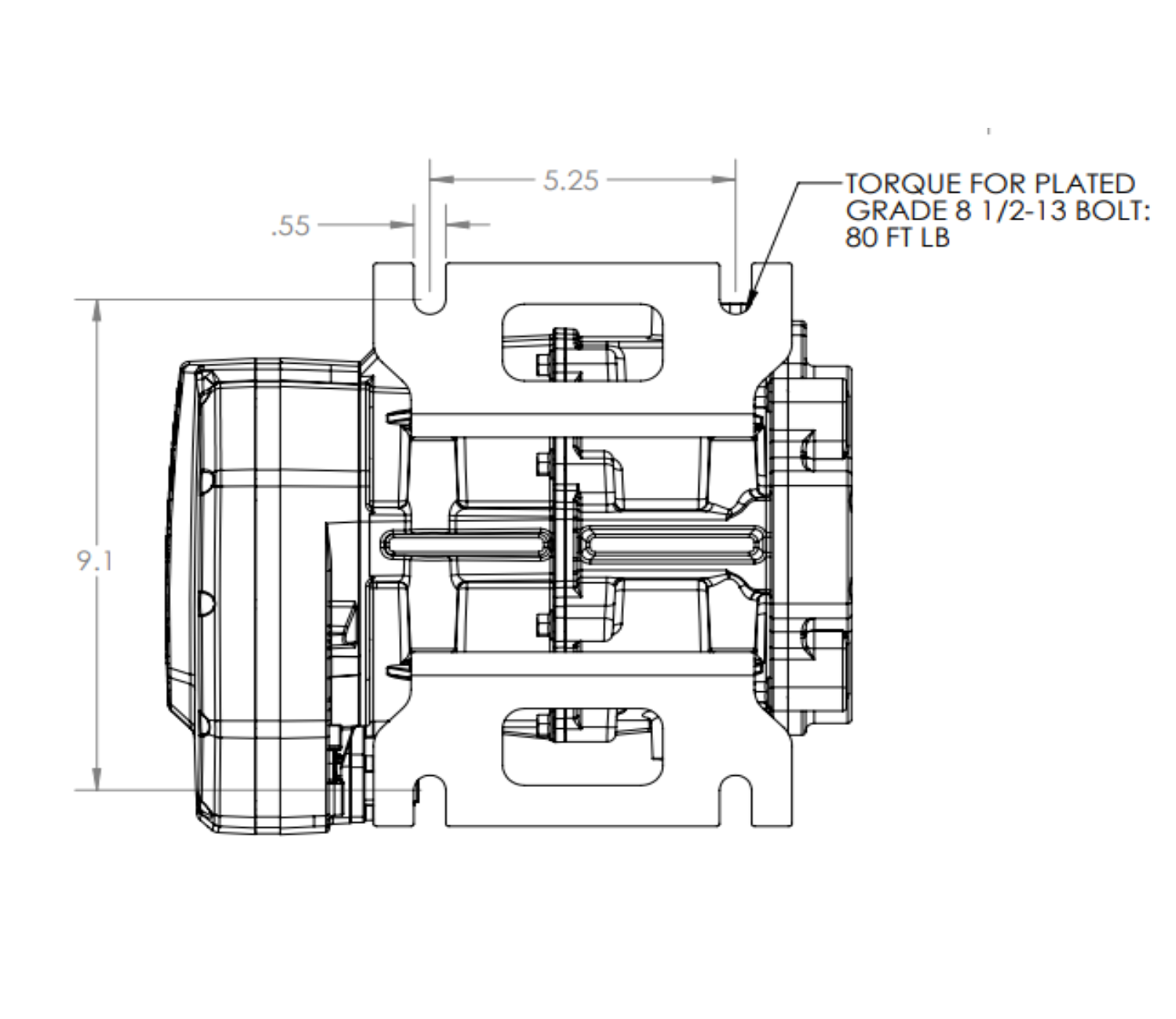

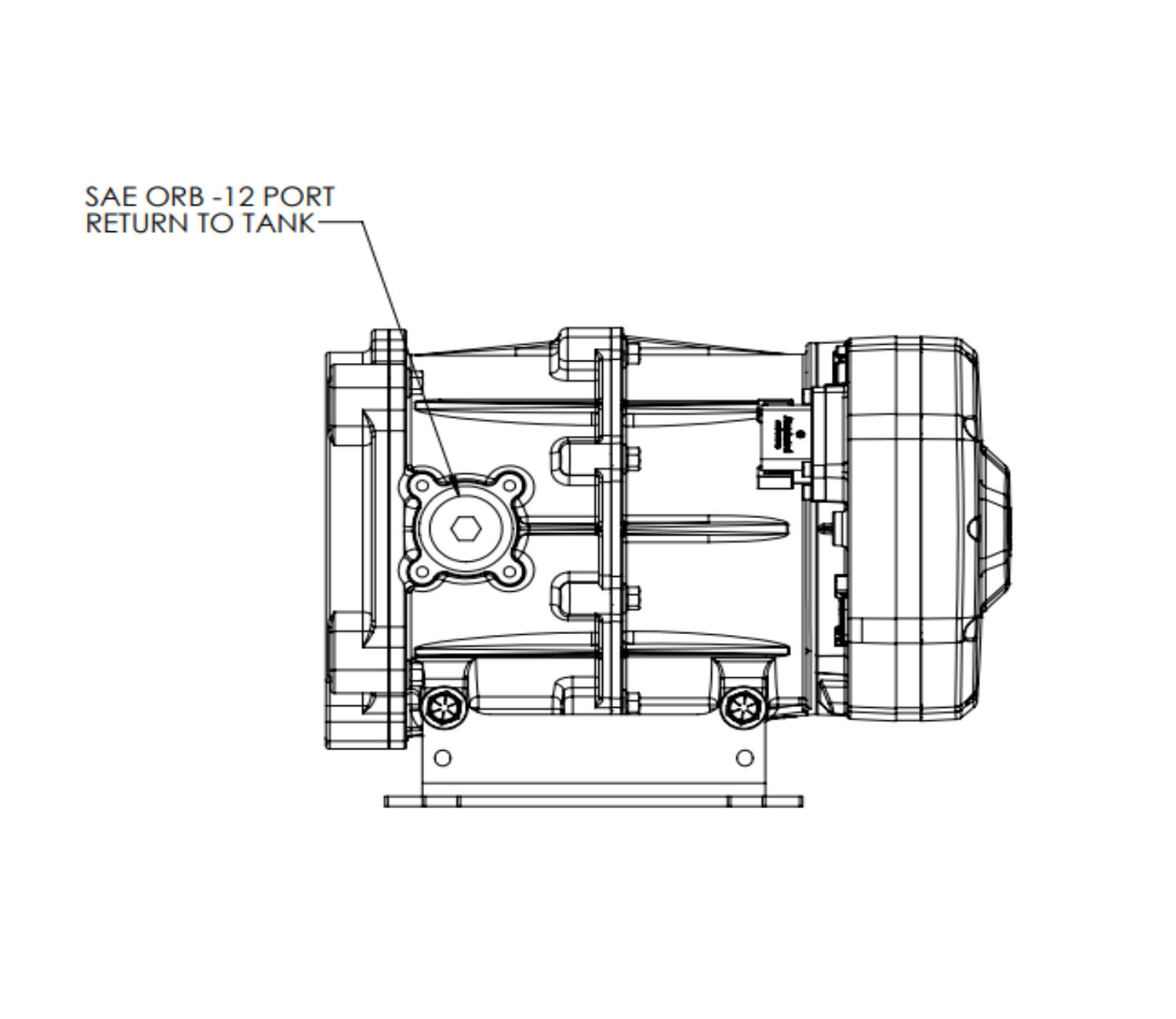

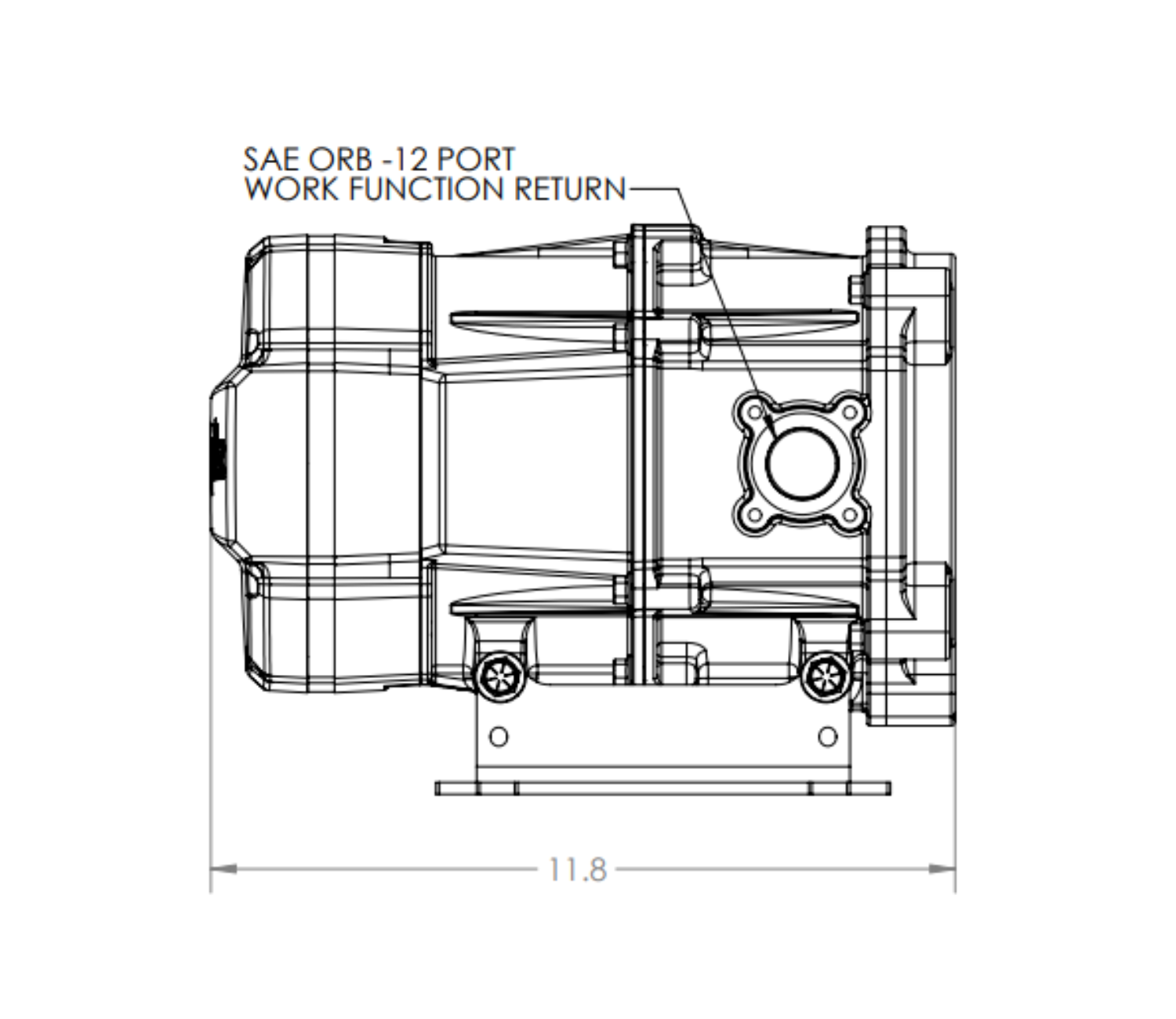

Specifications
Specifications

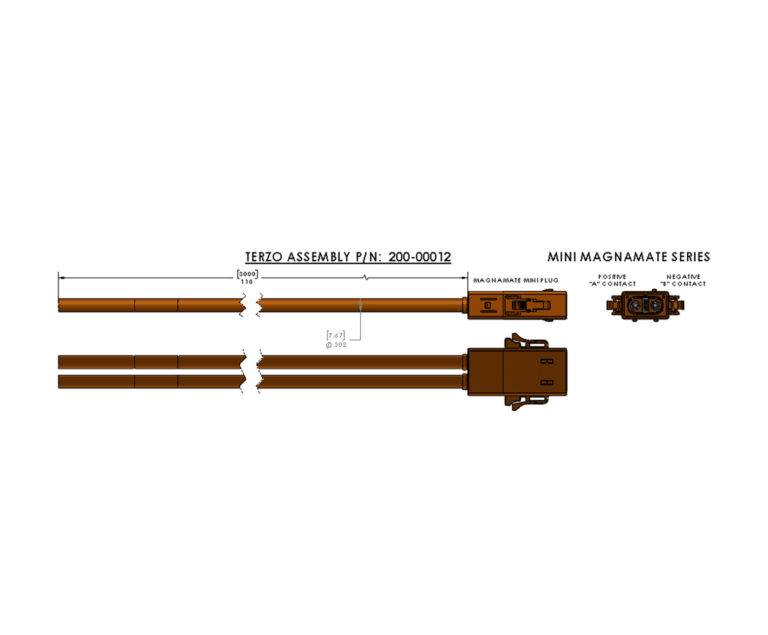

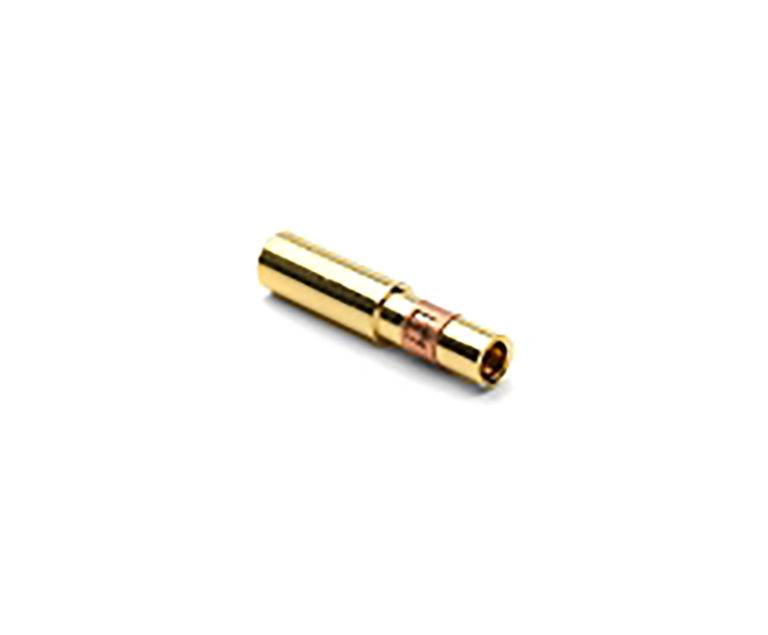

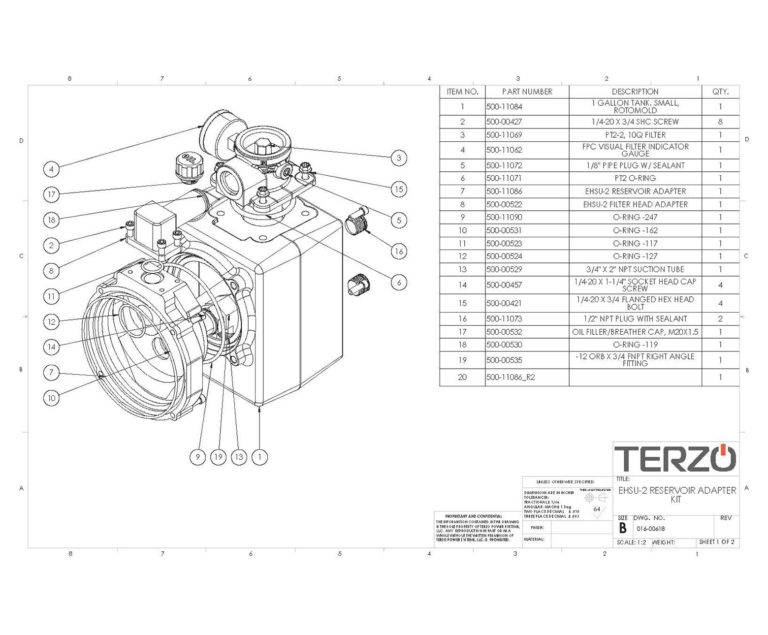

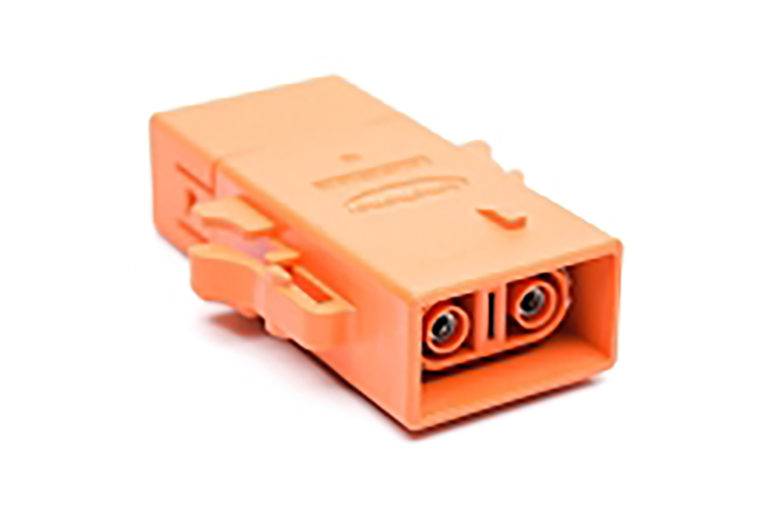

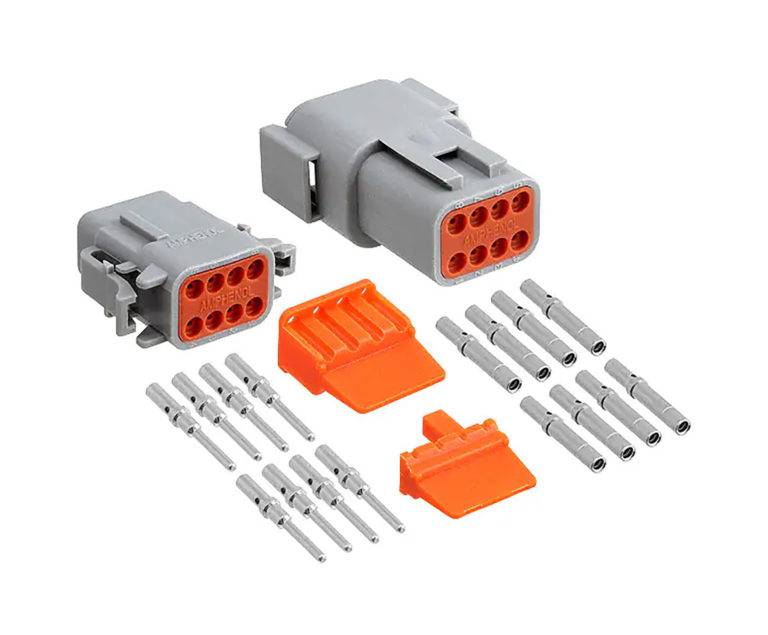

Accessories
Accessories
Details

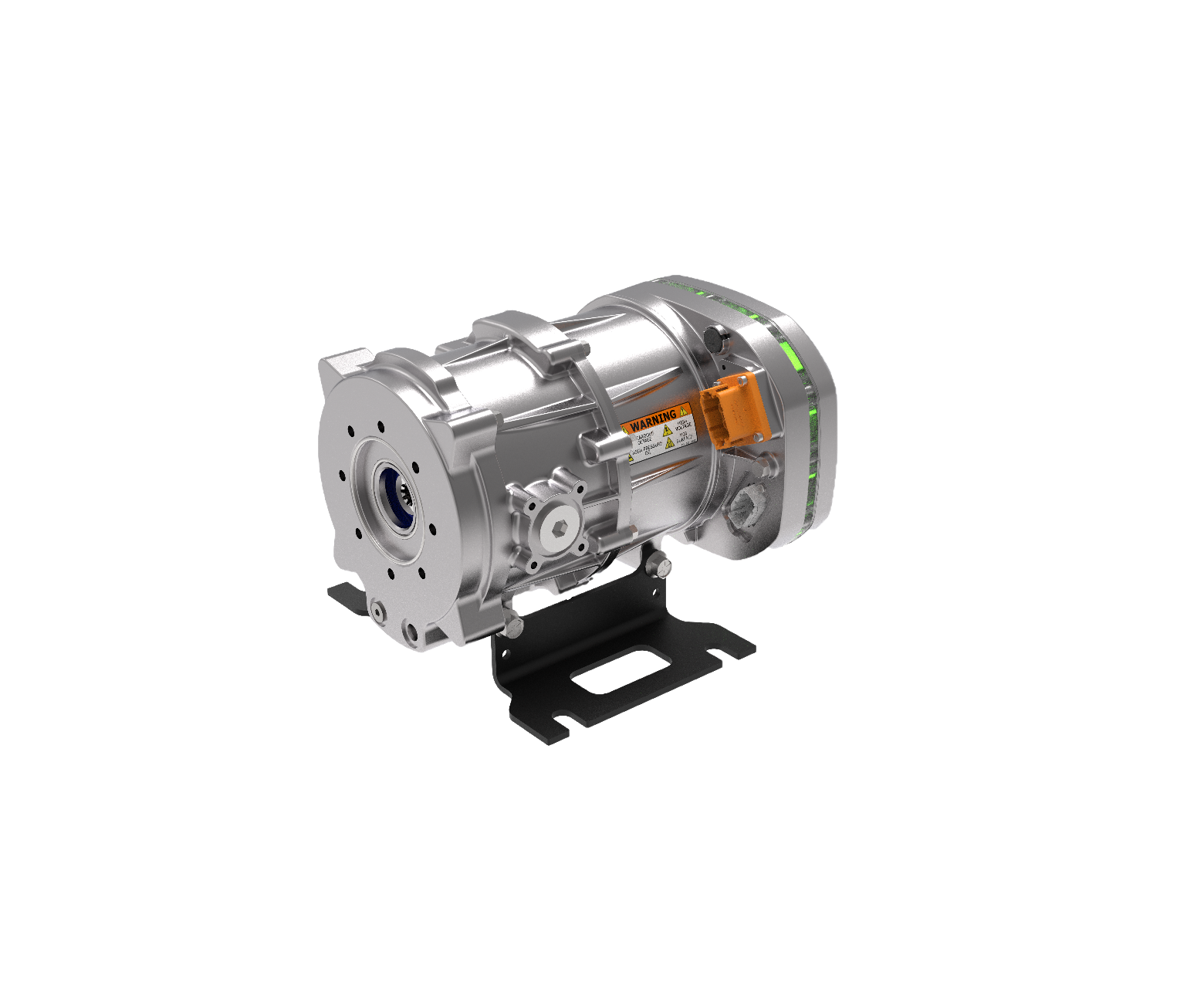

The EHPU-2 power unit delivers 10 kW of high-efficiency performance in a rugged, IP67-rated enclosure. Designed for demanding EV and hybrid applications, it integrates a compact motor, controller, and cooling system for seamless vehicle integration. Built-in pressure transducers and CAN/J1939 communication provide advanced control and diagnostics, while SAE pump mounting offers flexible compatibility for custom hydraulic needs.
Rated Power
10 kW (13.4hp)
Voltage
350 to 800 VDC

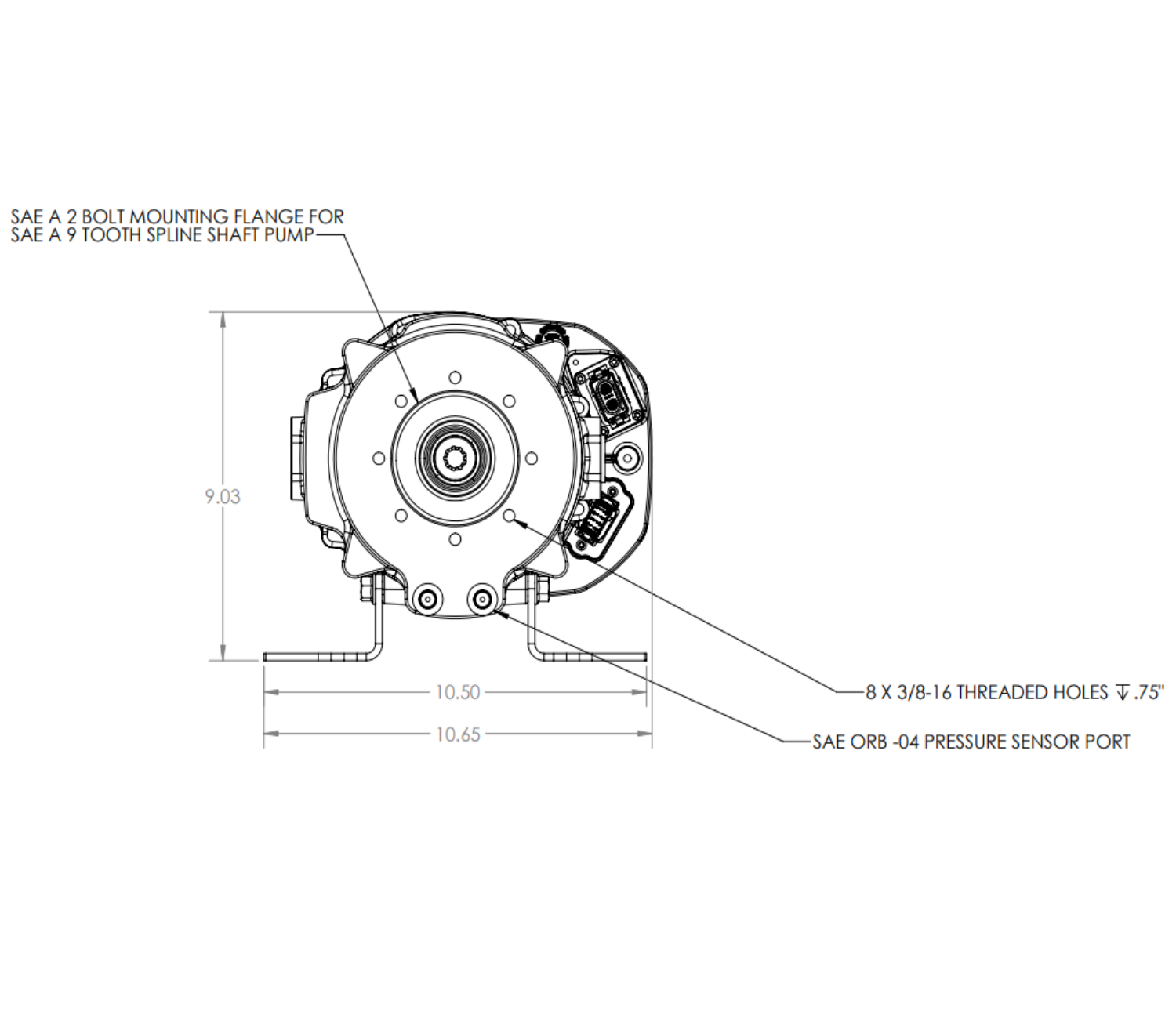

SAE Pump Mounting
Order Codes
EHSU – 2 – 105 – 350 – U – SAE – XXX
EHSU – 2 – 105 – 650 – U – SAE – XXX
OEM Customs
Download Data
User Manual
Data Sheet
CAD Files
More Info
Environmental Protection Projections
Climate
- SAE J1455-4.1.3 Temperature Cycle
- SAE J1455-4.1.3 Thermal Shock
- SAE J1455-4.1.3 Thermal Stress
- SAE J1455-4.2 Humidity
Mechanical Vibration
- SAE J1455-4.10 Swept Sine Vibration
- SAE J1455-4.10.4 Random Vibration
- SAE J1455-4.11 Mechanical Shock
- SAE J1455-4.11 Operational Shock / Harness Shock
- SAE J1455-4.12 Combined Environmental
- ISO 16750 Vibration
Electrical
- SAE J1455-4.13 Heavy-Duty Truck Electrical Environment
EMI/EMC EIC
-
IEC 61000-6-4 Radiated Emissions
-
IEC 61000-6-2 Industrial Immunity
-
FCC Part 15B Class A
-
CISPR 25
-
ISO 11452-2 Radiated Immunity (RI)
-
ISO 11452-4 Bulk Current Injection (BCI)
-
ISO 10605 Electrostatic Discharge (ESD)
-
ISO 7637-2 (3rd Edition) Electrical Transients (on 12VDC lines)
