EHSU-1-056

F1 Series

Features

EHSU-1-075_Features-5
EHSU-1-075_Features-4
EHSU-1-075_Features-3
EHSU-1-075_Features-2
EHSU-1-075_Features-1
previous arrow
next arrow
EHSU-1-075_Features-5
EHSU-1-075_Features-4
EHSU-1-075_Features-3
EHSU-1-075_Features-2
EHSU-1-075_Features-1
previous arrow
next arrow

Key Features

With our integrated cooling, power electronics, motor, and pump, the Hydrapulse® EHSU provides the cleanest and most cost effective integration into your chassis, machine, or vehicle platform.

  • Onboard pressure transducers
  • Power dense permanent magnet motor
  • 200vDC to 800vDC
  • HVIL connection
  • Integrated cooling (no external cooling required)
  • CAN / J1939 Communications
  • Onboard diagnostics
  • Power-on-demand / energy savings
  • Complete temperature monitoring
  • Rugged die-cast aluminum housing

Applications

EHSU-1-075_Application-1
EHSU-1-075_Application-4
EHSU-1-075_Application-3
EHSU-1-075_Application-2
previous arrow
next arrow
EHSU-1-075_Application-1
EHSU-1-075_Application-4
EHSU-1-075_Application-3
EHSU-1-075_Application-2
previous arrow
next arrow

Applications

The Frame Size 1 steering unit is optimized for alternative powered vehicles in the medium-duty vehicle weight categories between 10,000 lb. (4,500 kg) and 26,000 lb. (12,000 kg) needing hydraulic steering power levels up to 3 kW.

  • Bus/Transit
  • Mining vehicles
  • BEV/FCEV/Hybrid Vehicles
  • Bucket / Work / Vocation / Utility Trucks
  • Delivery / Last Mile Trucks
  • Box / Refer / Regional haulers
  • Airport Ground Support Equipment (GSE)
  • Port / Terminal Trucks / AGV
  • Purpose Built Platforms
  • Off-highway vehicles

Specifications

Spec-Image-EHSU-1-056_5
Spec-Image-EHSU-1-056_4
Spec-Image-EHSU-1-056_3
Spec-Image-EHSU-1-056_2
Spec Image - EHSU-1-056
previous arrow
next arrow
Spec-Image-EHSU-1-056_5
Spec-Image-EHSU-1-056_4
Spec-Image-EHSU-1-056_3
Spec-Image-EHSU-1-056_2
Spec Image - EHSU-1-056
previous arrow
next arrow

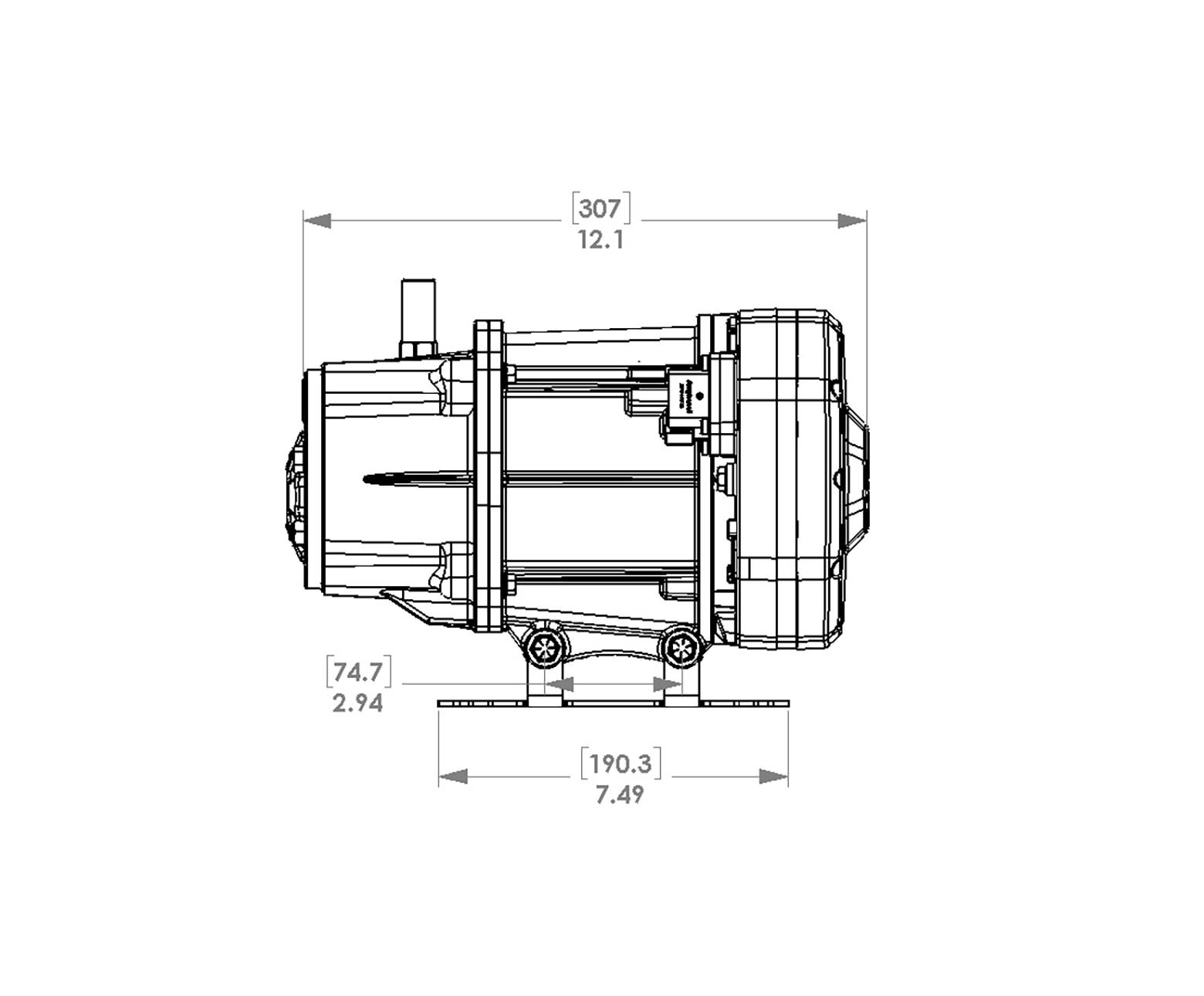

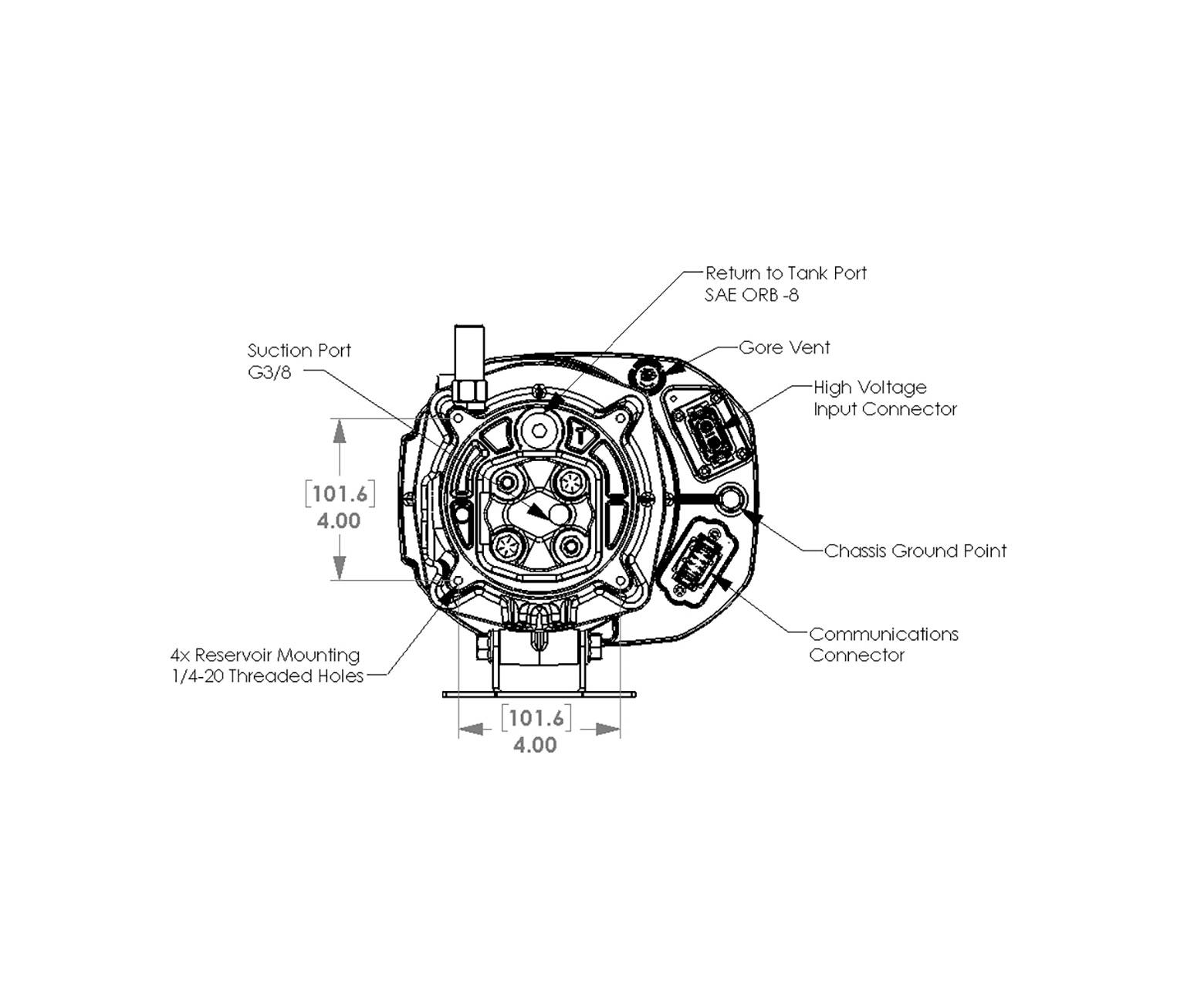

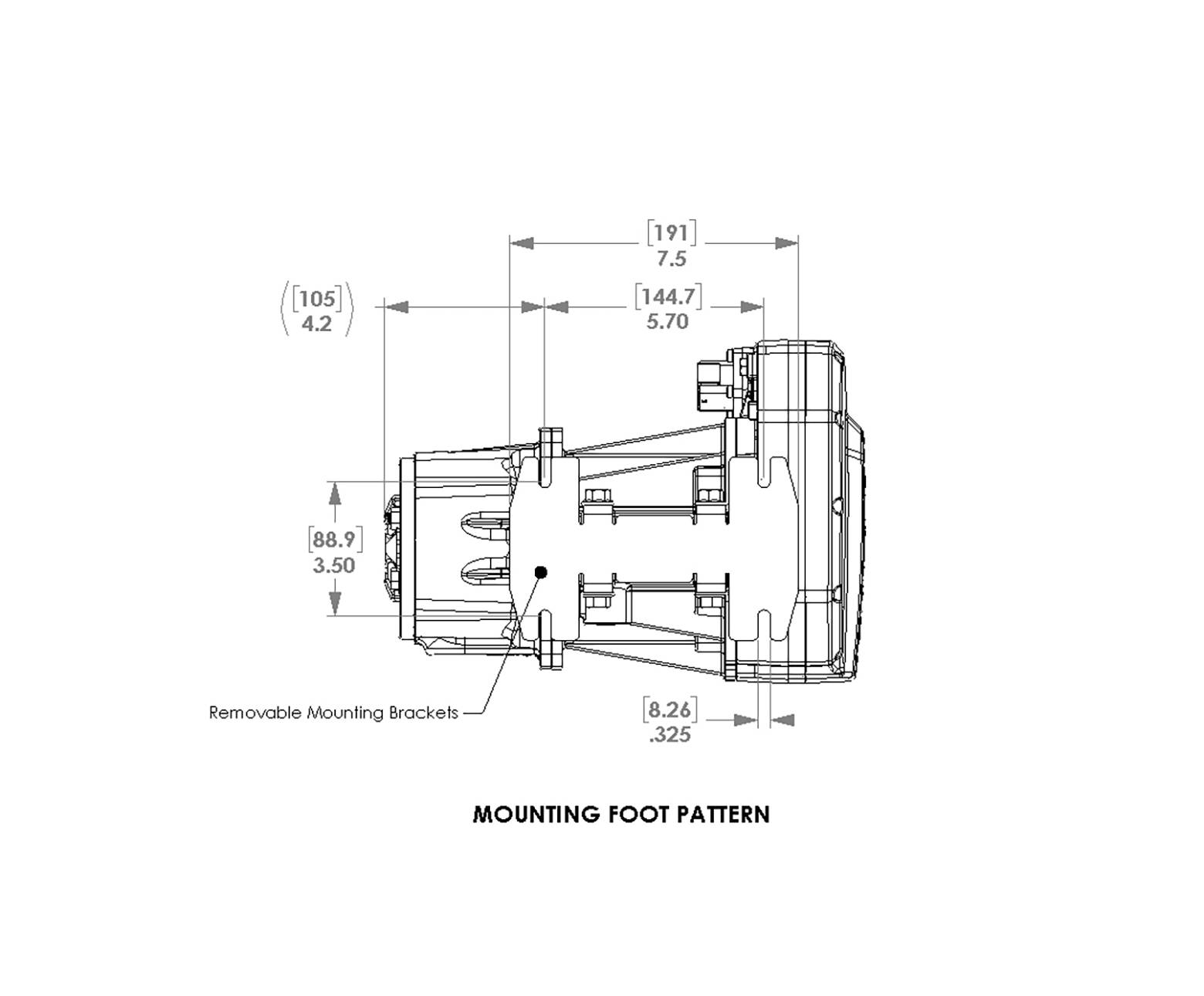

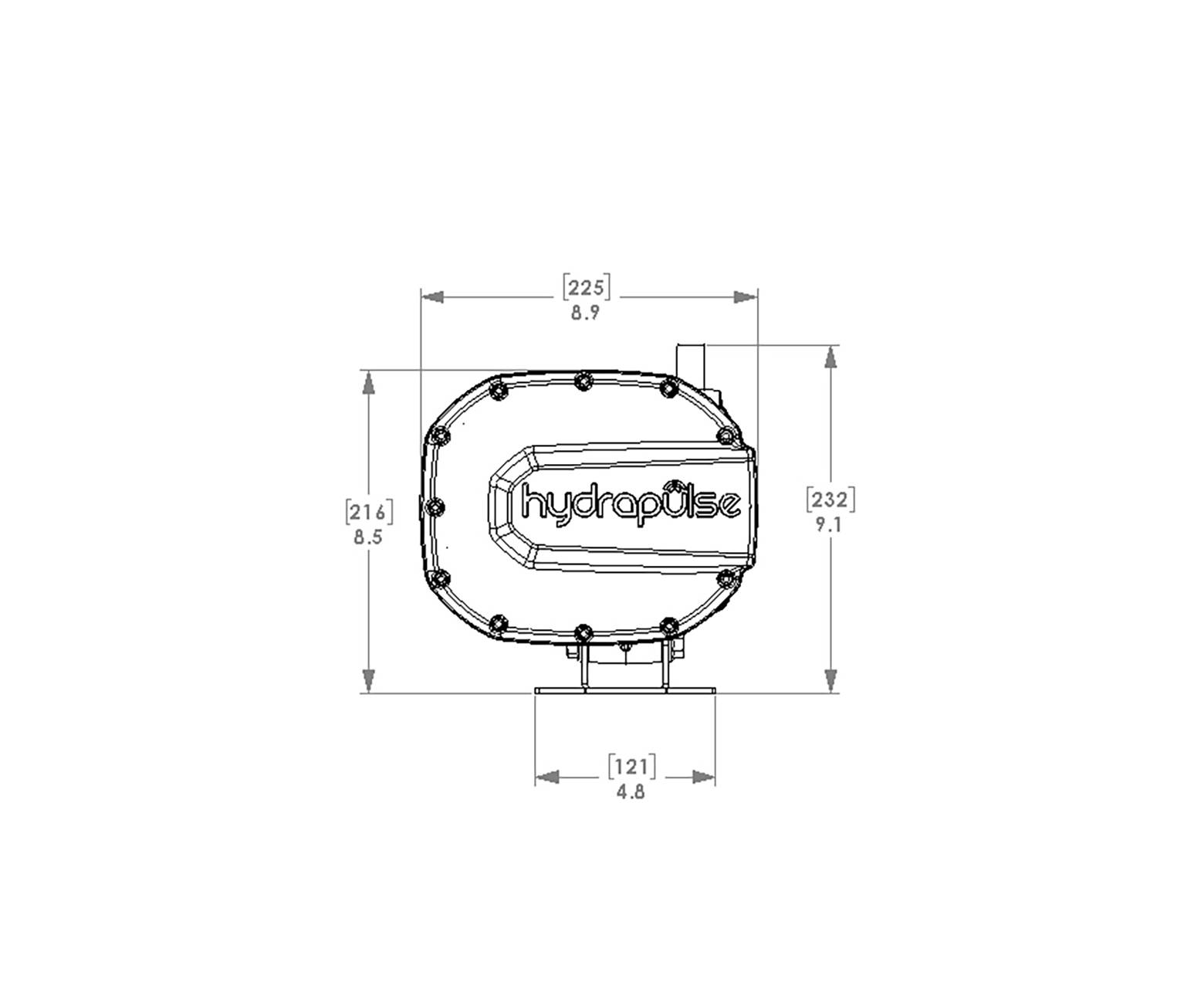

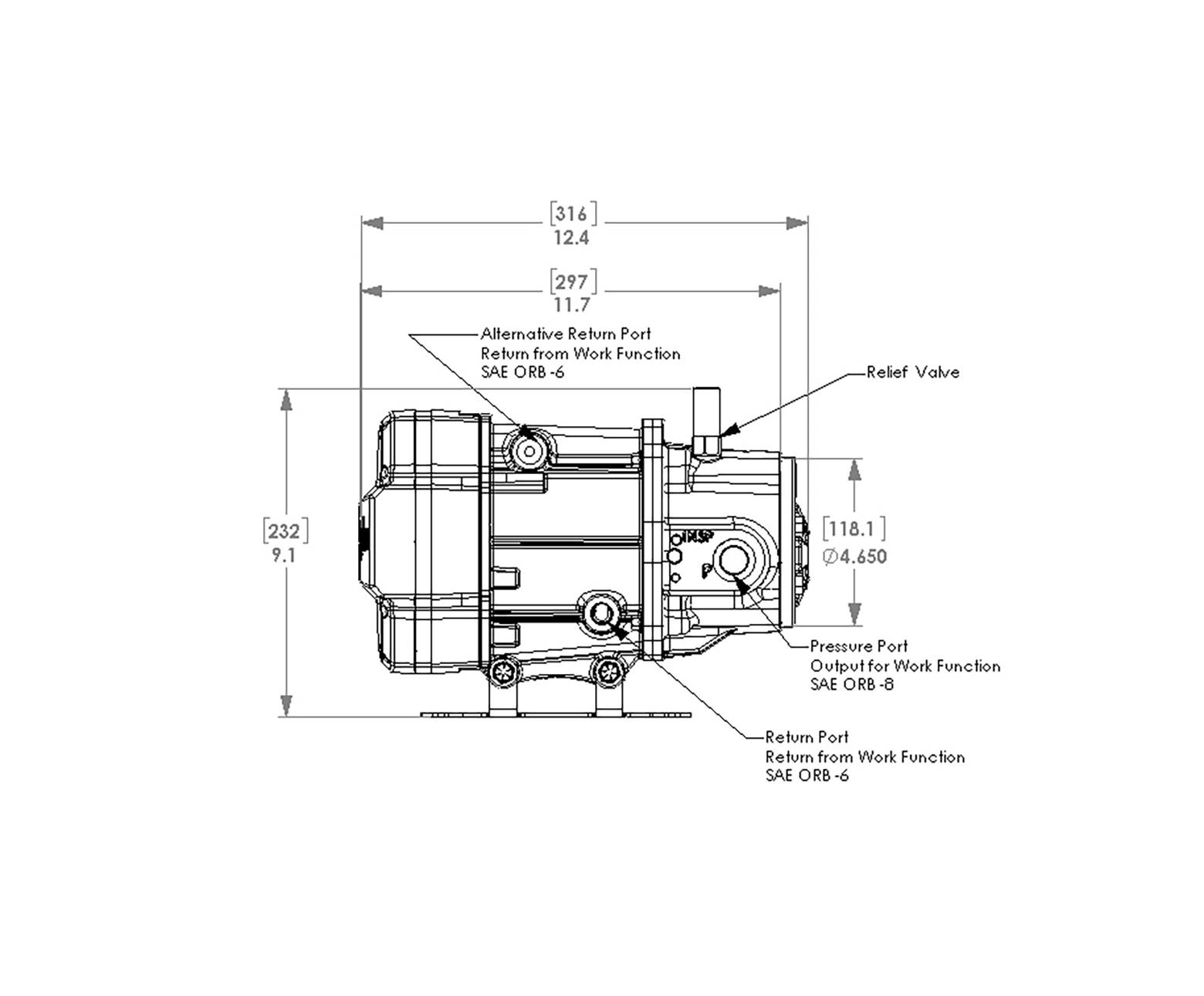

Specifications

Built from the ground up for the rugged on- and off-highway markets, The F1 Series steering unit meets the following specifications:

  • Rated current – 7 amps
  • IP Rating IP67
  • Max Speed 4,000 rpm
  • Weight 14.2kg (31.4lbs.)
  • Rated Voltage 200Vdc to 800Vdc
  • Rated Power 2.5 kW (3.3hp)
  • Operating Temp. -40°C to 85°C
  • Storage Temp. -40°C to 125°C

Accessories

Accessories-Image-EHSU-1-056_5
Accessories-Image-EHSU-1-056_4
Accessories-Image-EHSU-1-056_3
Accessories-Image-EHSU-1-056_2
Accessories Image - EHSU-1-056
previous arrow
next arrow
Accessories-Image-EHSU-1-056_5
Accessories-Image-EHSU-1-056_4
Accessories-Image-EHSU-1-056_3
Accessories-Image-EHSU-1-056_2
Accessories Image - EHSU-1-056
previous arrow
next arrow

Accessories

We offer a complete assortment of accessories to ensure you have everything you need for your electro-hydraulic system. If you have any questions or do not see what you need, be sure to give our team a call.

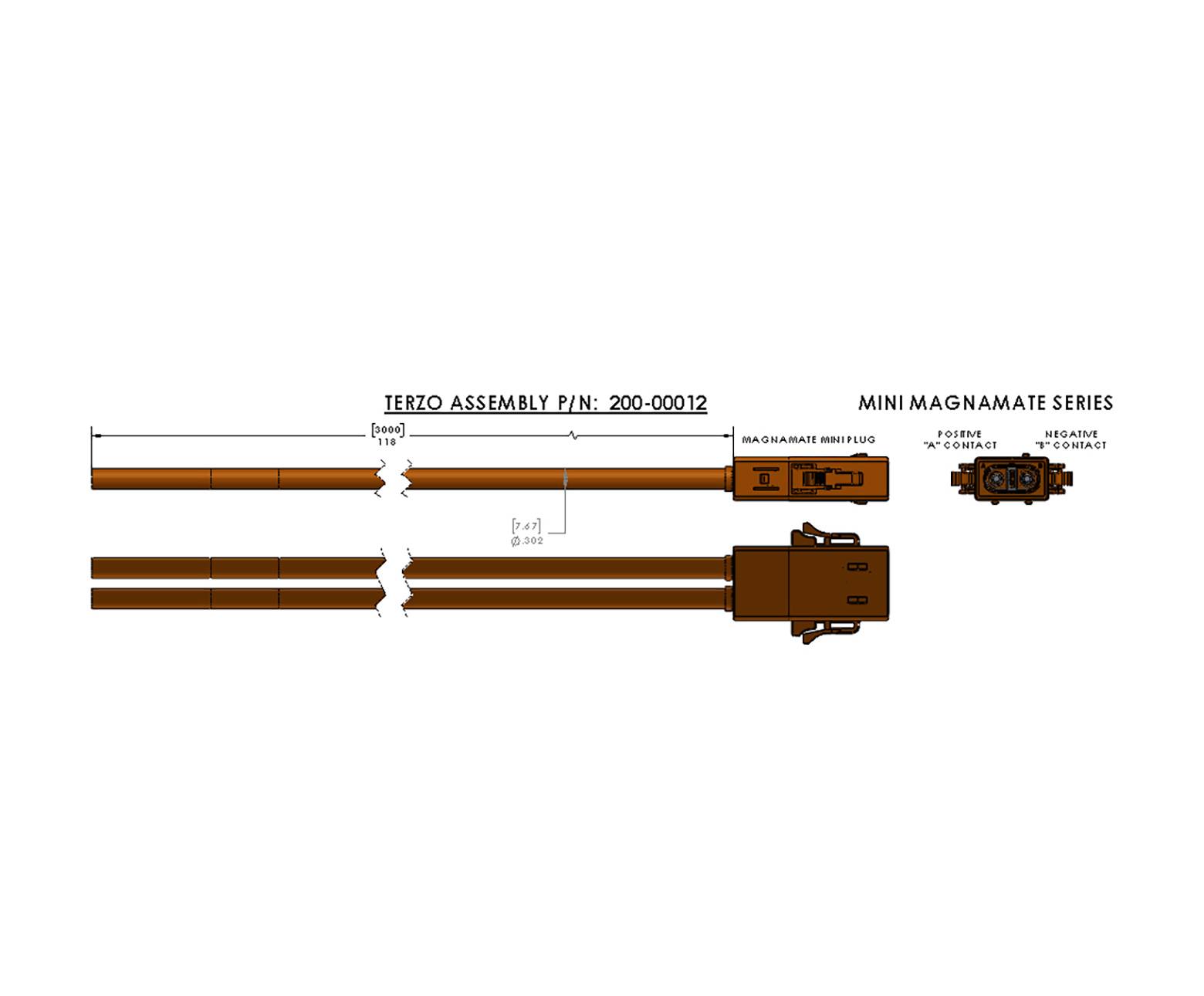

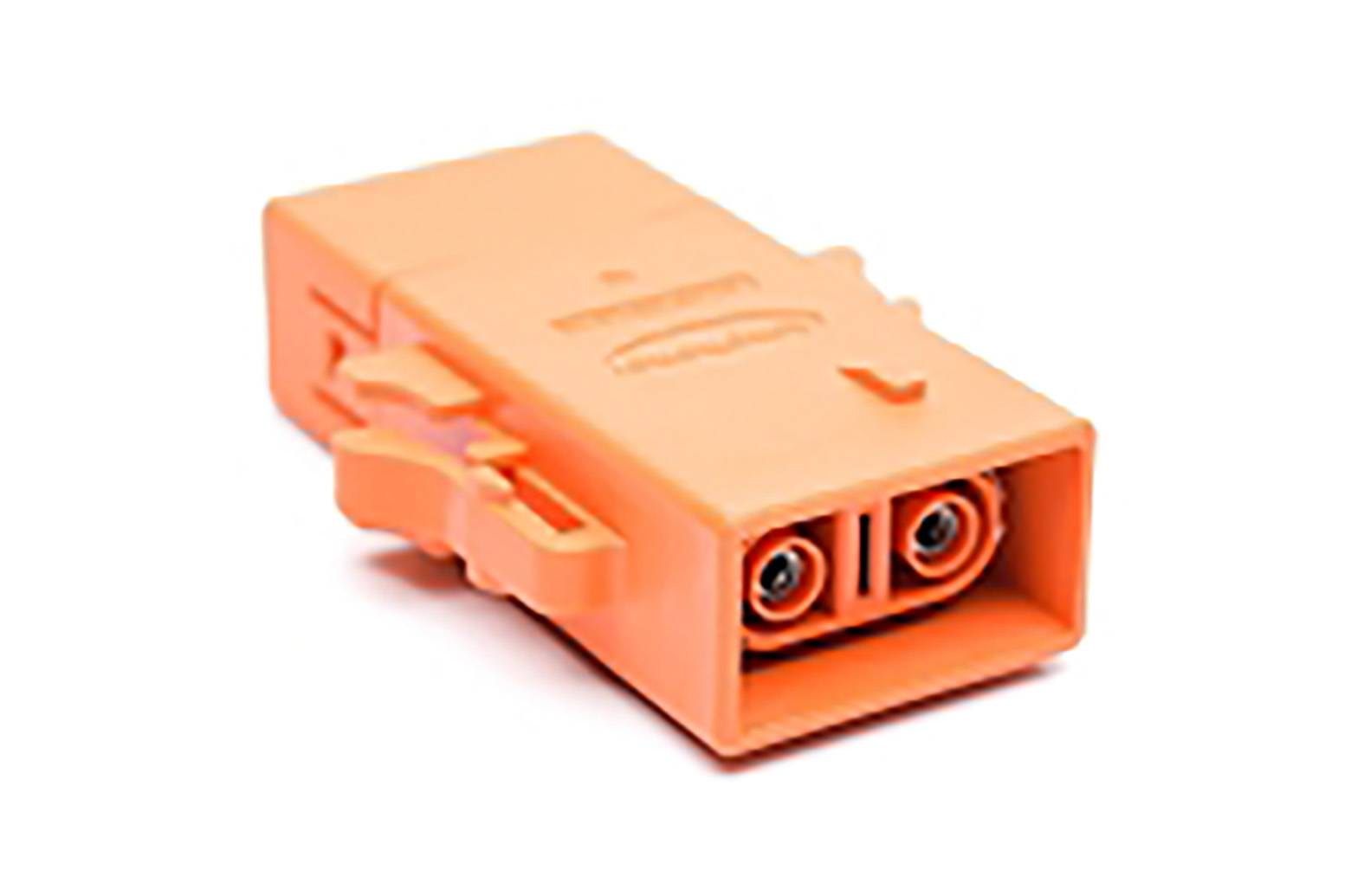

  • High Voltage Power Cable

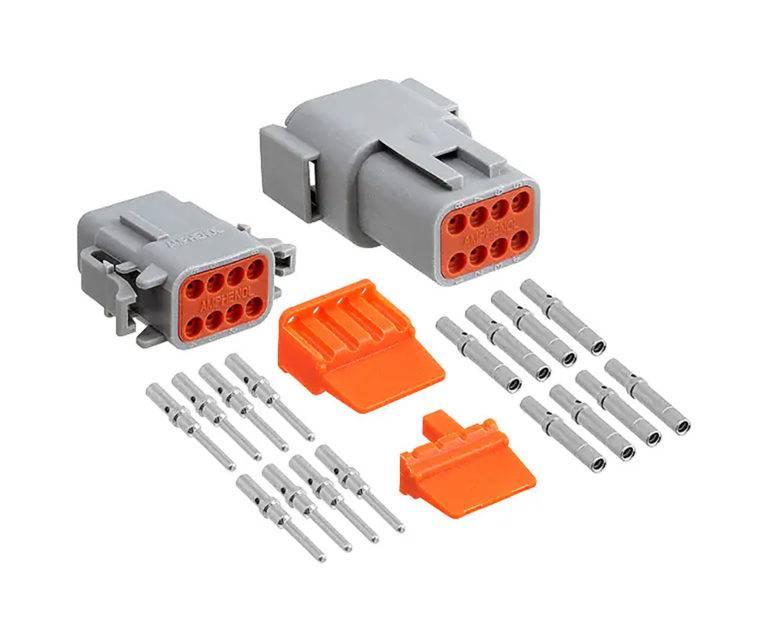

  • Low Voltage Connector Kit
  • Mounting Bracket(s)

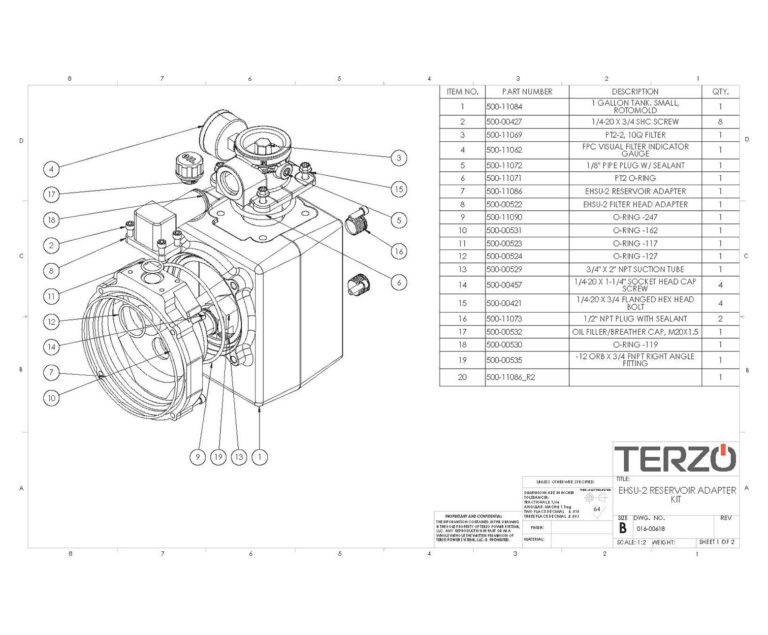

  • Reservoir Kits
  • Wireless / Wired Controllers
  • I/O Modules
  • Fittings / Hose Kits
  • Lifting Brackets
  • Cooler Packages

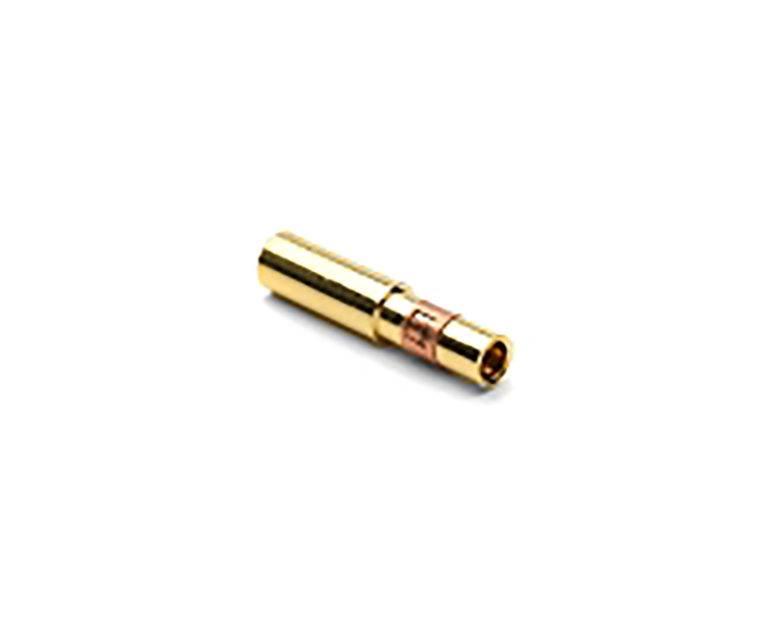

  • Connector kits

Details

The EHSU-1 Steering unit provides up to 3 kW of power and integrates a system pressure relief and onboard pressure control. Multiple mounting configurations allow for flexible and compact fitment into the vehicle chassis. All EHSU steering pumps come standard with our quiet helical gear pump.
  • Rated Power: 2.5 kW (3.3 hp)
  • Input Power: 350V to 800V DC
  • Rated Current: 7 amps
  • Weight: 14.2 kg (31.4 lbs.)
  • Temperature Rating: -40°C to 85°C

Order Codes

EHSU – 1 – 056 – 350 – U – 4E – XXX
EHSU – 1 – 056 – 650 – U – 4E – XXX

OEM Customs

Environmental Protection Projections

Climate

  • SAE J1455-4.1.3 Temperature Cycle
  • SAE J1455-4.1.3 Thermal Shock
  • SAE J1455-4.1.3 Thermal Stress
  • SAE J1455-4.2 Humidity

Mechanical Vibration

  • SAE J1455-4.10 Swept Sine Vibration
  • SAE J1455-4.10.4 Random Vibration
  • SAE J1455-4.11 Mechanical Shock
  • SAE J1455-4.11 Operational Shock / Harness Shock
  • SAE J1455-4.12 Combined Environmental
  • ISO 16750 Vibration

Electrical

  • SAE J1455-4.13 Heavy-Duty Truck Electrical Environment

EMI/EMC EIC

  • IEC 61000-6-4 Radiated Emissions

  • IEC 61000-6-2 Industrial Immunity

  • FCC Part 15B Class A

  • CISPR 25

  • ISO 11452-2 Radiated Immunity (RI)

  • ISO 11452-4 Bulk Current Injection (BCI)

  • ISO 10605 Electrostatic Discharge (ESD)

  • ISO 7637-2 (3rd Edition) Electrical Transients (on 12VDC lines)
