F3-66
Electro-Hydraulic Power Unit
Features
Key Features

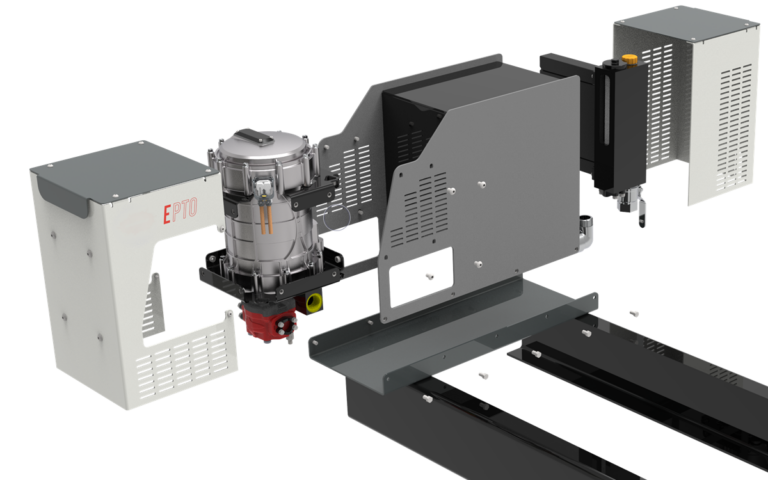

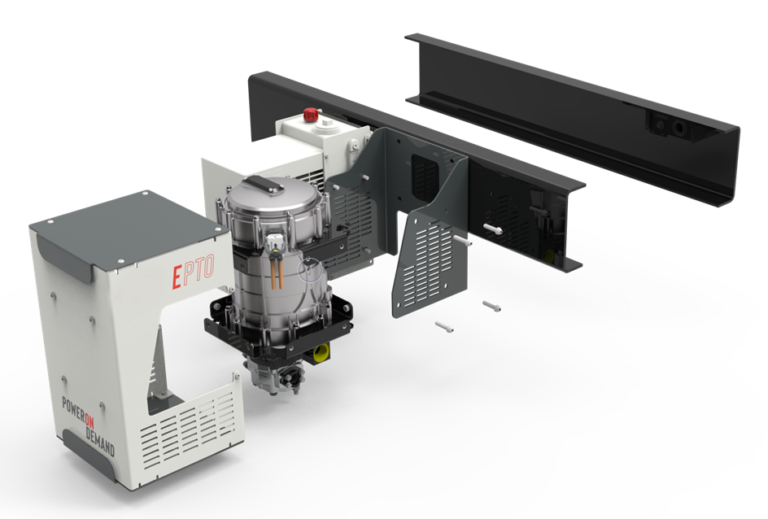

Applications
Applications
Specifications
Specifications
Accessories
Accessories
Details

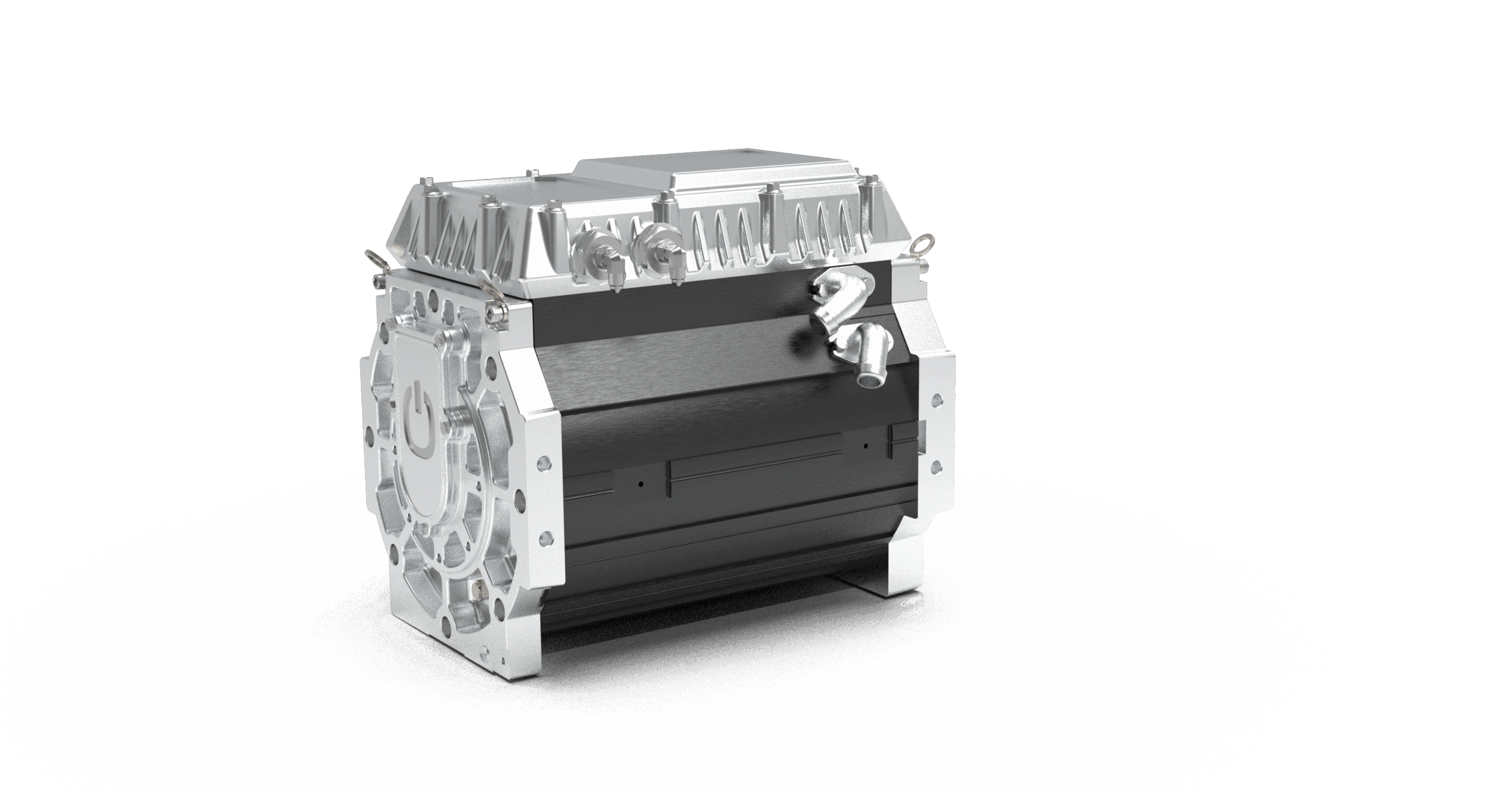

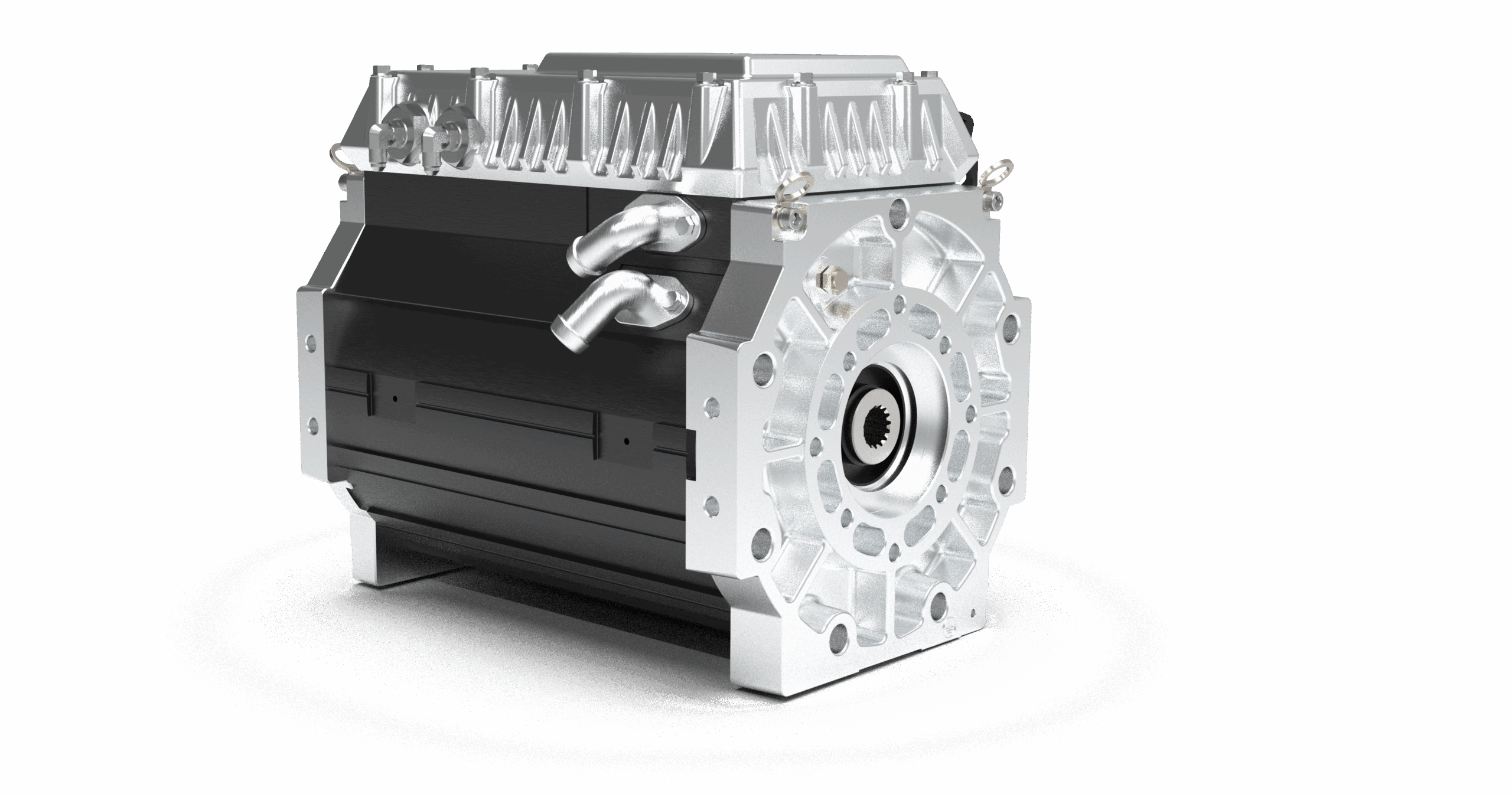

The Hydrapulse® F3 is a high-voltage electro-hydraulic power unit purpose-built for demanding EV and mobile hydraulic applications. Delivering up to 90 kW of peak power, the F3 integrates an advanced permanent magnet motor, liquid cooling, and a compact form factor that simplifies installation. With built-in pressure sensors, onboard control modes, and J1939 CAN support, it provides responsive power-on-demand. Whether used for traction drive motors, electric PTOs, or auxiliary hydraulic functions, the F3 delivers unmatched performance and flexibility for electrified platforms.
Order Codes
F3-66kw-650-SAE – XXX
OEM Customs
Download Data
User Manual
Data Sheet
CAD Files
More Info
Environmental Protection Projections
Climate
- SAE J1455-4.1.3 Temperature Cycle
- SAE J1455-4.1.3 Thermal Shock
- SAE J1455-4.1.3 Thermal Stress
- SAE J1455-4.2 Humidity
Mechanical Vibration
- SAE J1455-4.10 Swept Sine Vibration
- SAE J1455-4.10.4 Random Vibration
- SAE J1455-4.11 Mechanical Shock
- SAE J1455-4.11 Operational Shock / Harness Shock
- SAE J1455-4.12 Combined Environmental
- ISO 16750 Vibration
Electrical
- SAE J1455-4.13 Heavy-Duty Truck Electrical Environment
EMI/EMC EIC
-
IEC 61000-6-4 Radiated Emissions
-
IEC 61000-6-2 Industrial Immunity
-
FCC Part 15B Class A
-
CISPR 25
-
ISO 11452-2 Radiated Immunity (RI)
-
ISO 11452-4 Bulk Current Injection (BCI)
-
ISO 10605 Electrostatic Discharge (ESD)
-
ISO 7637-2 (3rd Edition) Electrical Transients (on 12VDC lines)
