F3-66

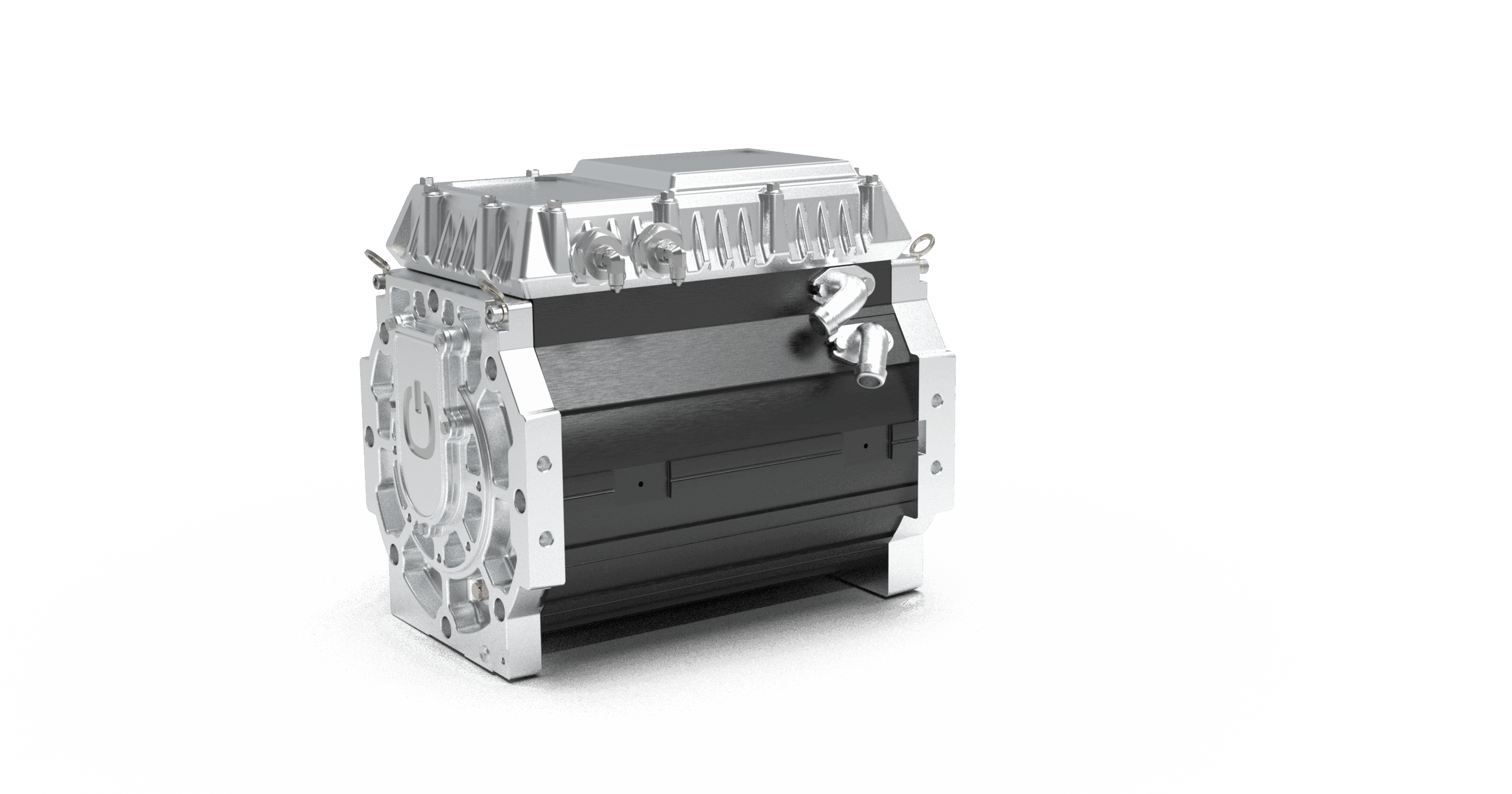

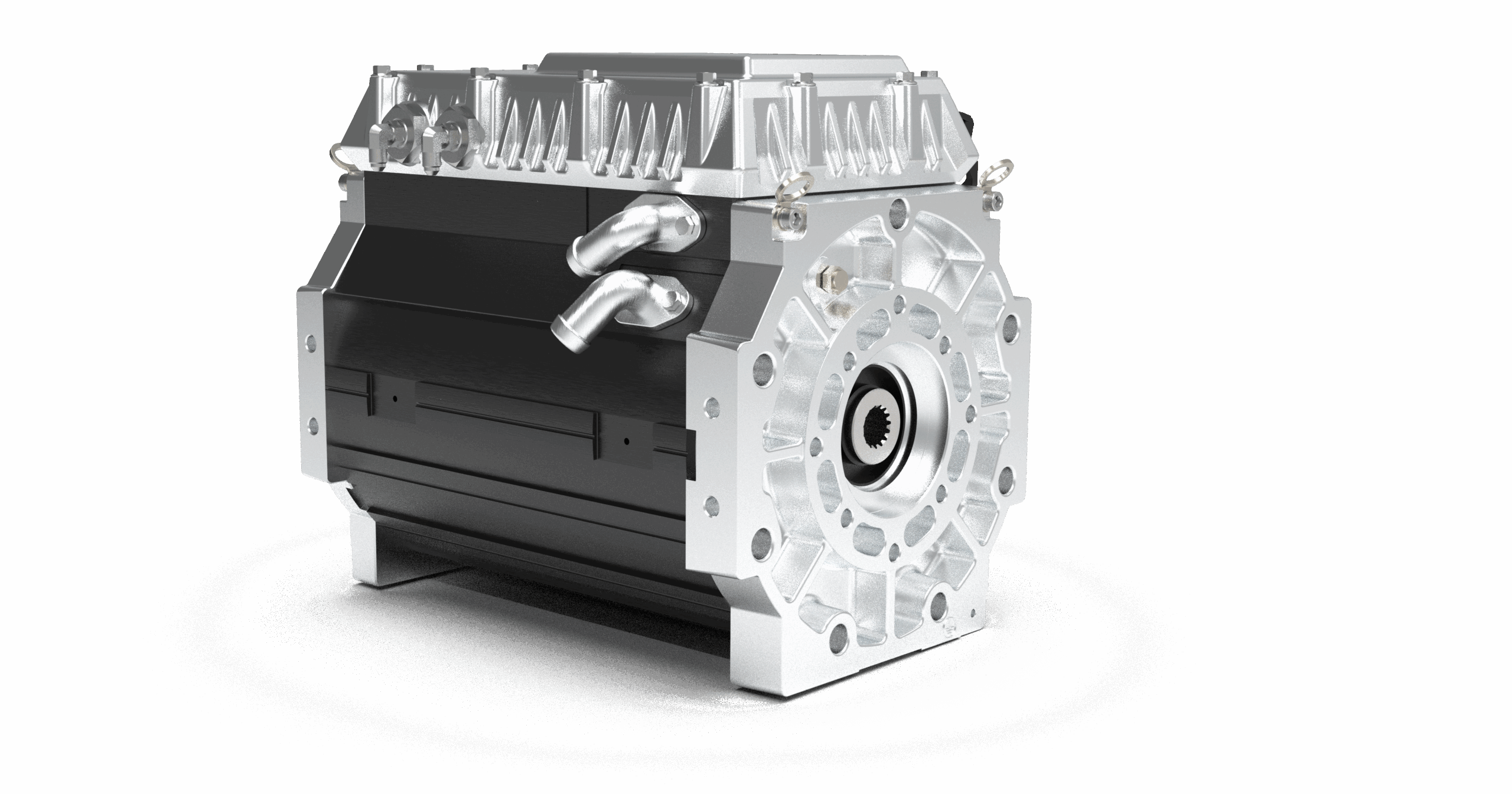

F3-66kW High Voltage Integrated Motor for ePTO and EV Applications
Terzo Power’s 66kW high voltage electric motor with integrated power electronics is purpose-built for electric and hybrid vehicle applications, including electric power take-off (ePTO) systems. The SAE pump mounting interface enables direct coupling to hydraulic pumps, making it a true plug-and-play solution for OEMs and system integrators. With modular output shaft configurations, it easily adapts to a wide range of applications — from propulsion and auxiliary hydraulics to on-demand starter-generator functionality. The integrated electronics simplify system wiring and reduce installation time, while delivering highly efficient performance across a broad operating range. Ideal for commercial EVs, mobile machinery, and industrial equipment, Terzo’s 66kW motor provides a scalable, flexible platform for electrifying traditional hydraulic and mechanical systems.

• Onboard pressure transducers
• Power dense permanent magnet motor
• 200vDC to 800vDC
• HVIL connection
• CAN / J1939 Communications
• Onboard diagnostics
• Power-on-demand / energy savings
• Complete temperature monitoring
• Rugged die-cast aluminum housing

The Frame Size 3 Electro-Hydraulic Power unit is optimized for alternative powered vehicles of all sizes requiring power levels above 20 kw.

• Mining vehicles
• BEV/FCEV/Hybrid Vehicles
• Bucket / Work / Vocation / Utility Trucks
• Wheel Loaders / Excavators /
• Box / Refer / Regional haulers
• Airport Ground Support Equipment (GSE)
• Port / Terminal Trucks / AGV
• Purpose Built Platforms
• Off-highway vehicles

Built from the ground up for the rugged on- and off-highway markets, The F3 Series steering unit meets the following specifications:

• Rated current – 180 amps
• IP Rating IP67
• Max Speed 3000 rpm
• Weight
• Rated Voltage 200Vdc to 800Vdc
• Rated Power 66 kW (88 hp)
• Operating Temp. -40°C to 85°C
• Storage Temp. -40°C to 125°C

We offer a complete assortment of accessories to ensure you have everything you need for your electro-hydraulic system. If you have any questions or do not see what you need, be sure to give our team a call.

• High Voltage Power Cable
• Low Voltage Connector Kit
• Mounting Bracket(s)
• Planetary Gear Reducer (Coming Soon)
• Direct Drive Shaft Output (Coming Soon)
• Custom Pump Mount Options available upon request (Minimums apply)
